A solar system fusing guide should keep you from doing the two classic dangerous things: (1) leaving wiring unprotected from fault current, and (2) “fixing” nuisance blows by oversizing protection until something melts. If you’re guessing, STOP. Wrong overcurrent protection is how small PV systems turn into expensive failures.
This is a Troubleshooting Playbook: symptom → likely cause → safe checks → when to stop. I’m not giving wiring diagrams or step-by-step installation directions. You’ll get the safety logic, the failure signs, and the planning mindset.
STOP rules (when to stop and de-energize)
If any of these are true, stop and step back before you touch anything.
- You see browned plastic, melted fuse holders, or pitting/black marks near any DC connection. STOP.
- You smell hot plastic or “hot electronics” anywhere in the PV path. STOP. Use: inverter smells like burning plastic.
- You’re about to install a bigger fuse “so it stops blowing.” STOP. That’s not a fix.
- You’re unsure if the circuit is under load, or you can’t safely reduce PV output (shade/cover) for inspection. STOP.
- You’re using protection devices with unclear DC ratings or mystery branding. STOP.
Authority safety references (keep these bookmarked):
- NFPA (US): https://www.nfpa.org/
- Electrical Safety First (UK): https://www.electricalsafetyfirst.org.uk/
- Energy Safe Victoria (AU): https://esv.vic.gov.au/
- OSHA electrical safety overview: https://www.osha.gov/electrical
What most people assume vs what actually happens (at least 4)
Assume: “Fuses protect solar panels.”
Actually happens: fuses mainly protect conductors and downstream equipment from overcurrent and fault energy.
Assume: “If nothing is blowing, it’s safe.”
Actually happens: you can have hot connections at normal current that never exceed the fuse rating.
Assume: “Breakers are always better than fuses.”
Actually happens: each can be safe if properly DC-rated and used correctly; a cheap DC breaker can be worse than a good fuse.
Assume: “My system is small, so protection is optional.”
Actually happens: 10–20A DC faults and resistive heating can still damage plastics and ignite nearby combustibles.
Assume: “MC4 and adapters are ‘standard,’ so they don’t matter.”
Actually happens: every interface is a resistance opportunity; cheap holders and adapters are repeat offenders.
A solar system fusing guide is about stopping the failures people don’t see until the smell shows up.
Quick definitions (keep this simple)
- Fuse: one-time overcurrent device. It should open safely when current exceeds its design point.
- Breaker: resettable overcurrent device. It must be DC-rated for PV use.
- OCPD: overcurrent protective device (fuse or breaker).
- Fault current source: where the “push” comes from during a fault (other strings, batteries, generators, etc.).
- Interrupt rating: how much fault current the device can safely interrupt.
If you only remember one thing: DC rating and interrupt capability matter. AC parts don’t automatically behave safely on DC.
Troubleshooting Playbook: start with what you’re seeing
This section is the practical “what do I do now?” part of the solar system fusing guide.
Symptom 1 — “My fuse holder is warm, but the fuse isn’t blowing”
That’s classic contact resistance heating. A fuse can be electrically fine while the holder is failing mechanically.
Likely causes:
- weak spring contacts in the holder
- corrosion film at contact points
- cheap hardware with thin conductive parts
- poor strain relief causing micro-movement
Safe actions:
- STOP and de-energize for inspection.
- Replace any holder showing browning, glossing, or deformation.
- Reduce connector count where possible (adapters add heat points).
If your setup also uses a power strip “hub,” treat that as another potential heater: power strip into portable power station safe.
Symptom 2 — “The breaker trips only at peak sun”
Peak sun is peak current. Many “random trips” are just operating at the edge.
Likely causes:
- breaker not properly DC-rated for the application
- thermal margin is gone at high ambient temperature
- high resistance at terminals causing additional heat
Safe actions:
- Don’t upsize blindly. Confirm device ratings and heat behavior.
- Improve ventilation and reduce load stacking (solar + inverter + charging at once).
- Check for warm terminals (carefully) after a steady run.
If your power station fan is screaming during solar + load, that’s thermal stacking: power station inverter fan noise.
Symptom 3 — “Fuses keep blowing”
Repeated blows are either a real fault, a misapplied device, or a system being pushed beyond design.
Likely causes:
- damaged insulation or pinched cable (intermittent short)
- wrong fuse type/class for DC PV behavior
- backfeed you didn’t account for (parallel sources)
- poor contact heating causing cascading failure
Safe actions:
- STOP and isolate the system.
- Inspect cable runs for abrasion and pinch points.
- If you don’t have clear ratings/specs, stop guessing and get qualified help.
If your charging behavior is confusing (input present but battery still drops), read: can you charge a portable power station while using it.
Symptom 4 — “Everything works, but it smells hot”
Smell is an early warning. Treat it that way.
Likely causes:
- hot connection at a holder, adapter, or MC4 interface
- overloaded inverter or charger nearby
- coiled extension cord heating at the ends
Safe actions:
- STOP and remove loads.
- Reduce interfaces (no adapter stacks).
- Replace anything discolored or softened.
If you need extension cords during troubleshooting, don’t improvise: portable power station extension cord safety.

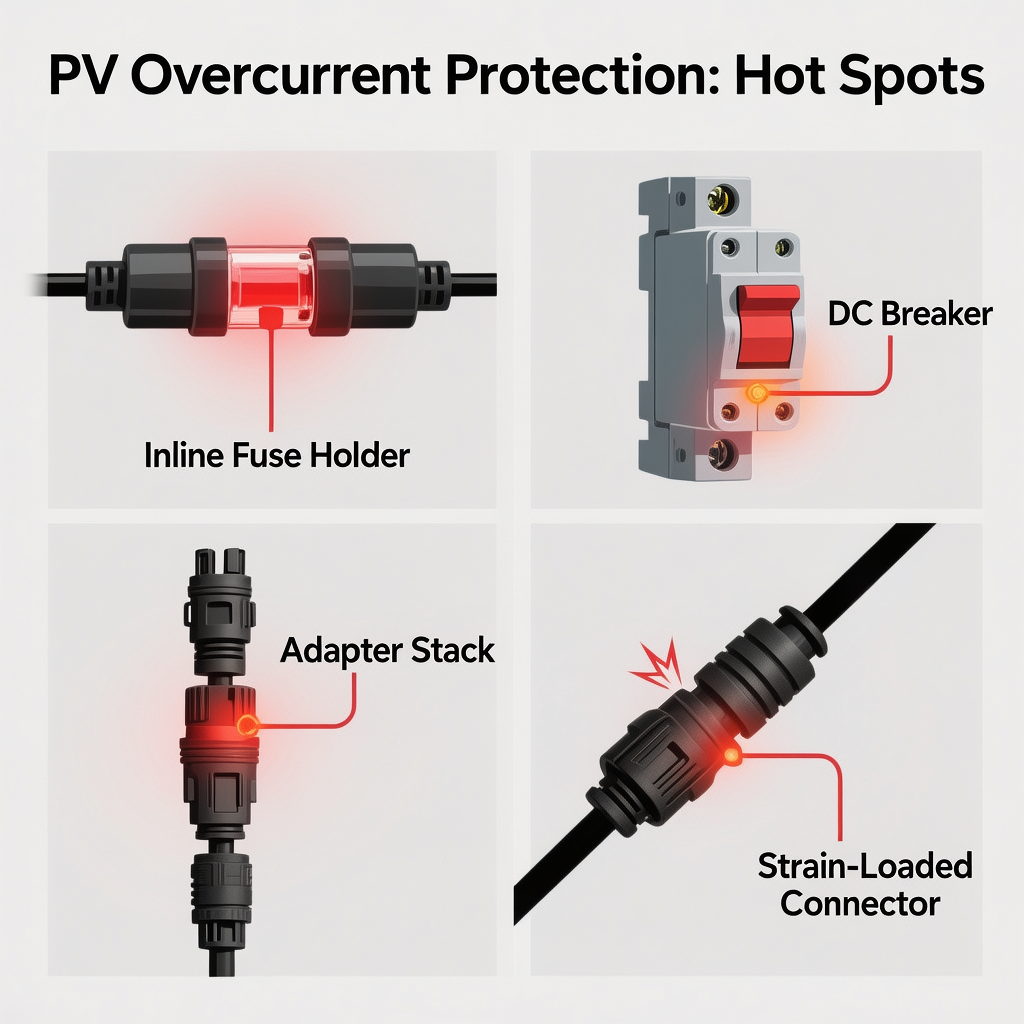

Risk matrix (bullet asset): what to fix first
A solar system fusing guide is only useful if it tells you where danger usually concentrates.
High severity / high likelihood
- fuse holders or breaker bodies warming up under normal current
- “up-fusing” to stop nuisance blows
- unknown DC ratings / unknown interrupt ratings
- loose or corroded terminals at high-current points
High severity / medium likelihood
- parallel sources causing backfeed you didn’t plan for
- water ingress into holders and connectors
- disconnecting PV under load causing arcing/pitting
Medium severity / high likelihood
- too many adapters/interfaces in a portable setup
- long cable runs increasing voltage drop and heating at weak points
Medium severity / low likelihood
- unclear labeling and poor access (delays shutdown when needed)
solar system fusing guide : “Where do I put fuses and breakers?” answered without wiring instructions
People want a diagram. A diagram would be irresponsible here because PV systems vary and local codes vary. A safe solar system fusing guide answers the “where” question using principles that don’t depend on a specific layout.
Principle 1 — Protect conductors from the fault current they can actually see
Protection belongs where a conductor could be forced above its safe current during a fault condition.
Principle 2 — Put protection as close as practical to the relevant fault source
The point is to minimize the length of conductor that can be fault-fed without protection.
Principle 3 — Choose DC-rated devices with adequate interrupt capability
DC interruption is not a “close enough” topic. Use correctly rated equipment.
If you’re unsure what rules apply in your region, stop and consult a qualified electrician. This is not a “learn it during a storm” category.

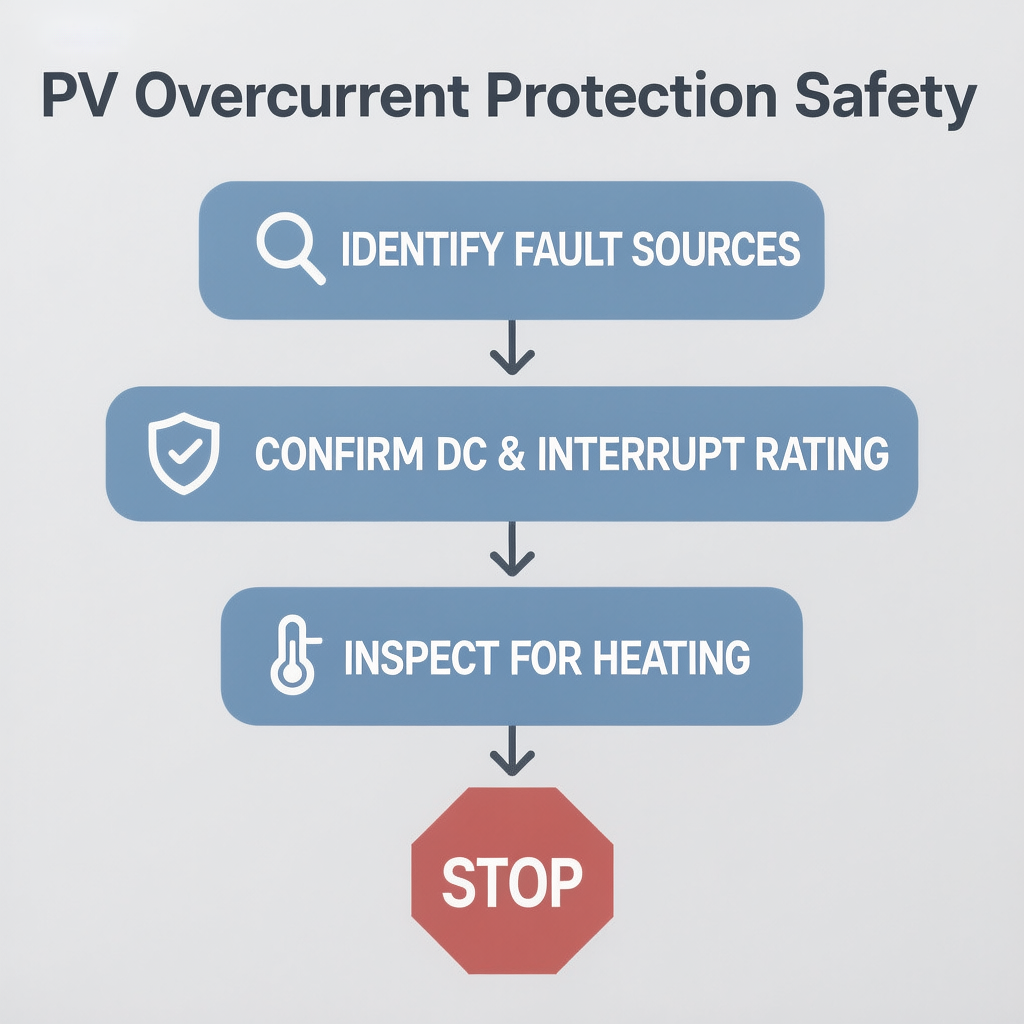

Decision tree (bullet asset): do you need overcurrent protection on this part?
Use this solar system fusing guide decision tree as a sanity check.
- Is there more than one possible current source feeding this conductor?
- Yes → overcurrent protection is often necessary (backfeed is real).
- No → continue.
- Can a fault on this conductor exceed what the conductor can safely carry?
- Yes → protection needs to be matched to the conductor and fault source.
- No → protection may be redundant, but disconnect/labeling may still matter.
- Is the device you’re feeding already internally protected (manufacturer documentation)?
- Yes → don’t add random inline devices unless recommended.
- No/unknown → continue cautiously.
- Is the protection device clearly DC-rated for voltage and interrupt duty?
- No → STOP and replace with appropriate hardware.
- Yes → proceed under qualified guidance.
That’s as far as a public-facing solar system fusing guide should go without becoming “wiring instructions.”
“If you see X, it usually means Y” (at least 4)
- If you see a fuse holder browning or softening, it usually means contact resistance heating, not “normal operation.”
- If you see a breaker trip only at midday, it usually means thermal margin is gone at peak current.
- If you see charging watts pulsing in stable sun, it usually means intermittent connection or protection cycling.
- If you see the problem improve when you wiggle a cable, it usually means a bad connection, not a bad panel.
- If you see repeated nuisance blows after adding loads, it usually means you’re operating too close to limits or a device is misapplied.
Worked numbers example: why “small resistance” makes real heat
This solar system fusing guide example isn’t for sizing by code. It’s to show why things cook even when nothing trips.
Assume a portable PV setup delivering 12 A into an MPPT input (very common).
If a cheap holder/contact adds 0.03 Ω of resistance:
- P=I2R=122×0.03≈4.3 W
4+ watts concentrated in a small plastic holder sitting in the sun can soften plastic, reduce spring pressure, and increase resistance further. That’s a failure loop.
Battery University has good background on heat and losses: https://batteryuniversity.com/
DC vs AC losses: why your “PV problem” may be a heat-stack problem
A lot of people test PV while also running AC loads off a power station. That stacks heat sources:
- MPPT/DC conversion heat
- inverter heat (AC output)
- charger heat (if also charging from the wall)
- connector/holder heat (weak interfaces)
If you’re running AC loads, also consider inverter waveform and stress on equipment: pure sine wave vs modified sine wave inverter.
If the goal is refrigeration, the load profile matters more than people assume: best solar generator for refrigerator.
Portable power stations + PV: what internal protection does (and doesn’t) do
For many readers, the “solar system” is panels → adapters → power station MPPT.
A solar system fusing guide should be honest here:
- Many power stations have internal protection on the solar input, but that doesn’t guarantee your external cables are protected from every fault scenario.
- Adapter chains add hot spots. Every interface is another potential heater.
Apartment users have extra placement and heat-management constraints: solar generator for apartment and portable power station fire safety apartment.
Fuse vs breaker: practical safety comparison (not install instructions)
In a solar system fusing guide, the choice is less about “which is better” and more about “which is correctly rated and reliable.”
- Fuses are predictable when properly specified; the holder quality matters a lot.
- Breakers are convenient; DC rating and interrupt capability are non-negotiable.
- Cheap devices with unclear ratings are a false economy.
If you’re fighting general overload and shutdown behavior on power stations (not just PV), you’ll want this context too: power station overload error reset (if/when you publish it).
Plug and adapter safety (US/UK/AU) — fit and heat only
PV troubleshooting often happens while you’re charging from the wall or running loads.
- US (NEMA): worn outlets can grip loosely; loose fit heats at the blades under sustained load.
- UK (BS 1363): robust plugs, but cheap adapters can run hot and loosen.
- AU (AS/NZS 3112): adapter quality varies; loose fit equals heating.
If an adapter body warms up, STOP using it. Heat at a connection is not “character.”
CDC preparedness context (for people planning outage power): https://www.cdc.gov/
EIA energy/outage data context: https://www.eia.gov/
Battery chemistry note (LiFePO4 vs NMC): why this shows up in fusing conversations
A solar system fusing guide isn’t only about PV. Many systems include batteries or power stations, and heat management affects both safety and lifespan.
- LiFePO4 (LFP) typically tolerates cycling and storage better.
- NMC often has higher energy density, but heat control matters more.
Chemistry comparison: LiFePO4 vs NMC portable power station.
solar system fusing guide: the “where” question without the dangerous shortcuts (H3)
The safest way to answer “where do I put protection?” is: place overcurrent protection where it actually limits fault current on the conductor you’re trying to protect, and where it’s accessible for inspection and shutdown.
If you’re copying diagrams without understanding fault sources, STOP. That’s how people end up with protection that looks professional and performs poorly.
What this guide does NOT cover
- No wiring diagrams or installation steps for PV strings, combiners, or service panels.
- No fuse sizing by code tables.
- No “put fuse X at point Y” directions. Local code and system design matter.
- No advice for modifying building wiring.
If you’re also troubleshooting connector issues, read: mc4 connector stuck and the connector reliability checks in: how to crimp mc4 connectors.
FAQ
solar system fusing guide
A solar system fusing guide should focus on protecting conductors and equipment from fault current using properly DC-rated fuses or breakers, minimizing unprotected conductor length, and treating heat at holders as a failure signal.
Do fuses protect solar panels from damage?
Not usually. They mainly protect wiring and downstream equipment from overcurrent events.
Why does my fuse holder get hot when current seems normal?
Because the holder contacts can be high resistance. Heat at normal current is a connection-quality problem, not an overcurrent trip event.
Is it safe to “upgrade” a fuse size to stop nuisance blows?
No. That can let wiring overheat before protection opens. Find the cause instead of oversizing protection.
Do portable power stations need external fusing on the solar input?
Sometimes they have internal protection, but you shouldn’t assume it covers every external fault condition. Follow manufacturer guidance and use quality components.
Conclusion
A solar system fusing guide is about fault control, not accessory shopping. Use correctly DC-rated protection, never upsize to hide a problem, and treat hot holders and adapters as failure warnings. If you smell hot plastic, see browning, or find pitting, STOP and replace the weak link—because that’s how you keep PV faults from turning into melted hardware and bigger safety issues.
