The “Pop” That Costs You $1,000
It happens in a split second. You just bought two extra solar panels to speed up your charging for your upcoming trip. You wire them together in a long daisy chain (series), plug them into your expensive portable battery, and expect to see massive wattage numbers.
Instead, you hear a sharp pop, maybe smell a whiff of ozone, and the screen goes dead. Or, if you are lucky, the screen flashes a frantic “OVERLOAD” or “E002” error code and refuses to charge.
This is the classic case of power station solar input voltage too high.
In my 15 years fixing industrial electronics and portable solar generators, this is the number one “user error” that kills equipment permanently. Unlike “Over-Amperage” (which the unit can usually ignore), “Over-Voltage” is fatal. It punches through the microscopic logic gates of your MPPT controller like a bullet through drywall.
If you are worried about your setup, or if you are currently staring at a power station solar input voltage too high warning on your screen, put the cables down and read this. I am going to explain exactly what Voc means, why cold weather is a silent killer, and how to calculate your voltage so you never fry a motherboard again.
Technician’s Warning: Voltage limits are hard limits. If your manual says “Max Input 60V,” sending 61V can permanently damage the unit. There is no “wiggle room” with voltage.
Part 1: The “Golden Rule” of Solar Voltage
Before we get into the complex math, you need to memorize one rule. It is the only rule that matters when matching panels to batteries to avoid the power station solar input voltage too high error.
Rule: The Open Circuit Voltage (Voc) of your solar array must NEVER exceed the Maximum Input Voltage of your power station.
Most people look at the wrong numbers. They look at “Watts” (Power) or “Vmp” (Operating Voltage).
- Watts: You can exceed watts (usually). The MPPT will just clip the excess.
- Amps: You can exceed amps (usually). The MPPT will just draw what it needs.
- Volts: You cannot exceed voltage. Ever.
If your power station solar input voltage too high error is triggered, it means the electrical pressure entering the input port has exceeded the dielectric strength of the internal components. It causes a short circuit inside the silicon chips.

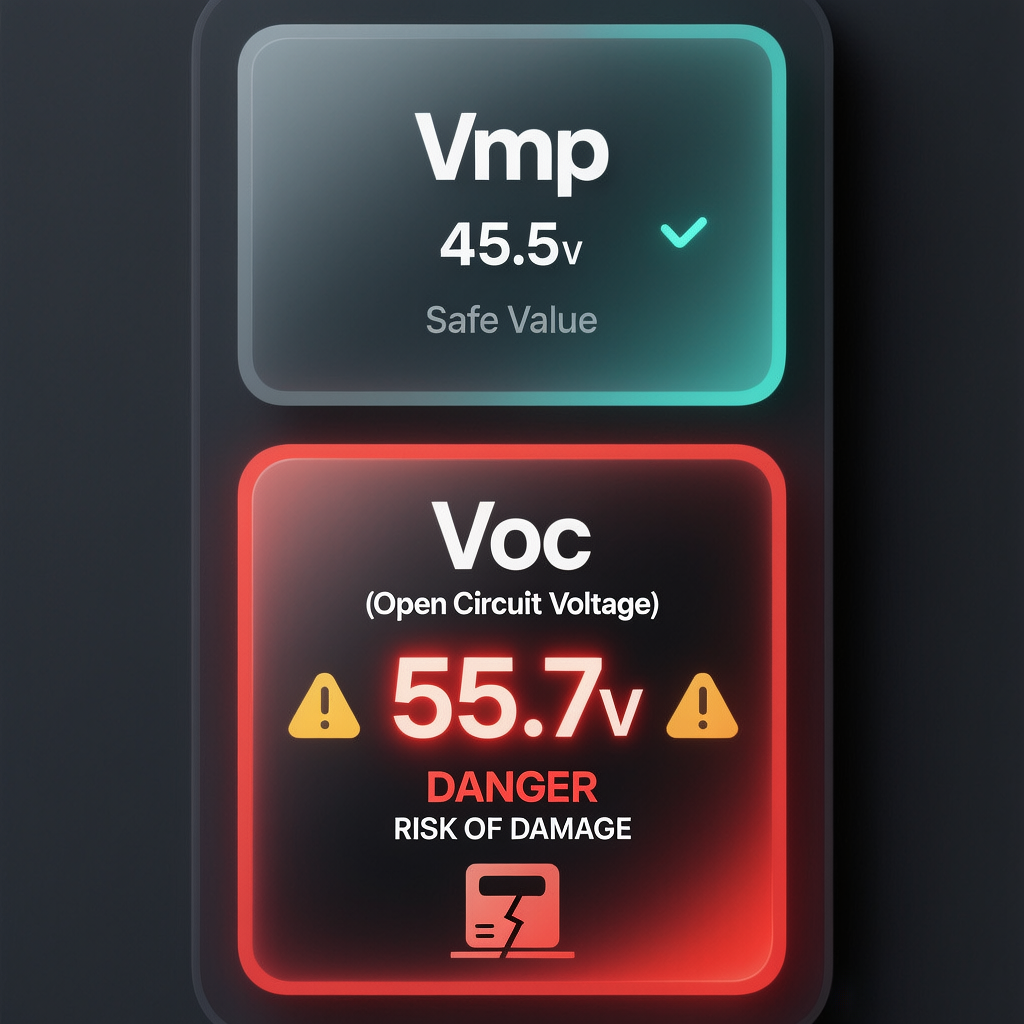

Part 2: Dissecting the Specs (Voc vs. Vmp)
To understand why your power station solar input voltage too high warning is flashing, you have to read the sticker on the back of your solar panel correctly. You will see two voltage numbers. Confusing them is dangerous.
1. Vmp (Voltage at Maximum Power)
- What it is: This is the voltage the panel outputs when it is working hard, under load, charging your battery.
- Typical reading: 18V for a “12V” panel.
- Trap: Many users calculate their setup using this number. This is wrong. If you use Vmp, you will likely create a power station solar input voltage too high situation in winter.
2. Voc (Voltage Open Circuit)
- What it is: This is the voltage the panel produces when it is disconnected, or when the battery is full and stops drawing current. It is the maximum electrical pressure the panel can build up.
- Typical reading: 22V – 24V for a “12V” panel.
- The Reality: Your power station sees the Voc every morning before the MPPT controller wakes up and starts drawing a load. If that Voc is higher than the limit, pop.
The Technician’s Takeaway: Always do your math using Voc, never Vmp. If you use Vmp, you are gambling with your hardware.
Part 3: The Cold Weather Killer (Temperature Coefficient)
Here is the secret that professional solar installers know, but most DIY campers miss. Solar panels produce MORE voltage when they get cold.
Electronics hate heat, but they love cold. As the temperature drops, the resistance in the silicon wafers decreases, and the voltage output spikes. This “Cold Voltage Spike” is the leading cause of unexpected power station solar input voltage too high failures.
- The Scenario: You build a solar array that produces 58V. Your power station has a limit of 60V. You test it in the summer (75°F), and it works great. You feel like a genius.
- The Failure: Winter comes. You go camping in 20°F weather. The cold causes the panel voltage to spike by 10%. Your 58V array is now pushing 63.8V.
- The Result: Power station solar input voltage too high. Your unit is fried on the first freezing morning of the trip.
The 10-15% Buffer Rule
Because of this “Cold Temperature Coefficient,” as a technician, I never design a system to run at 100% of the limit. I always leave a buffer to ensure I never see a power station solar input voltage too high error.
- Safe Calculation:
Total Vocx1.15(15% safety margin). - If that final number is under your Power Station’s limit, you are safe in winter.
- Related Guide: Cold weather portable power station runtime

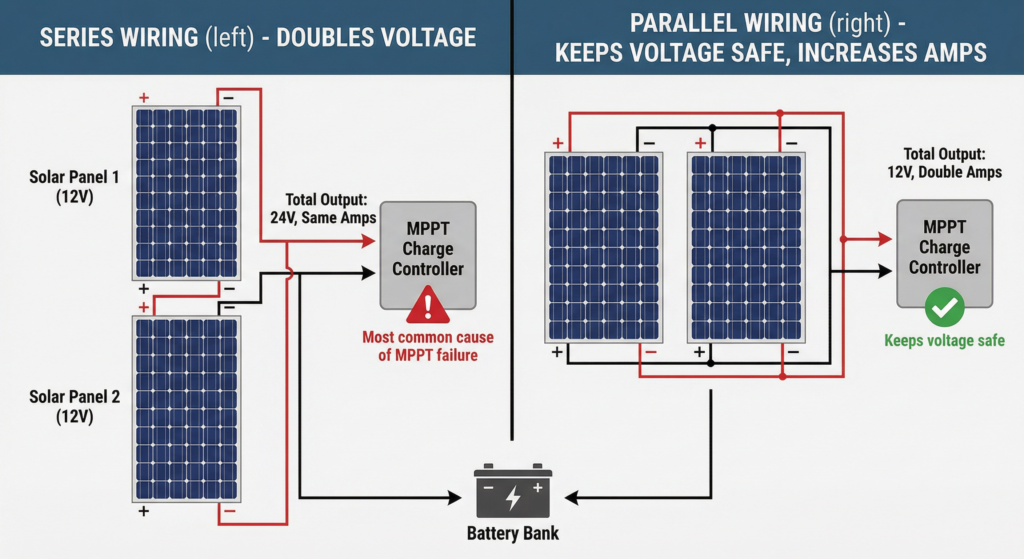

Part 4: The Physics of “Too High” (Series vs. Parallel)
How do you accidentally create a power station solar input voltage too high situation? Usually, it’s by wiring panels in Series.
You have two ways to wire solar panels together. Understanding the difference is critical to avoiding voltage overload.
1. Series Wiring (The Voltage Multiplier)
- How: Connecting the Positive of Panel A to the Negative of Panel B. Daisy-chaining them.
- The Math: Voltage Adds Up. Amperage stays the same.
- Panel 1: 20V, 5A.
- Panel 2: 20V, 5A.
- Total: 40V, 5A.
- The Risk: This is how you blow up your power station. If you keep adding panels in series, the voltage climbs rapidly until it exceeds the input limit, triggering the power station solar input voltage too high fault.

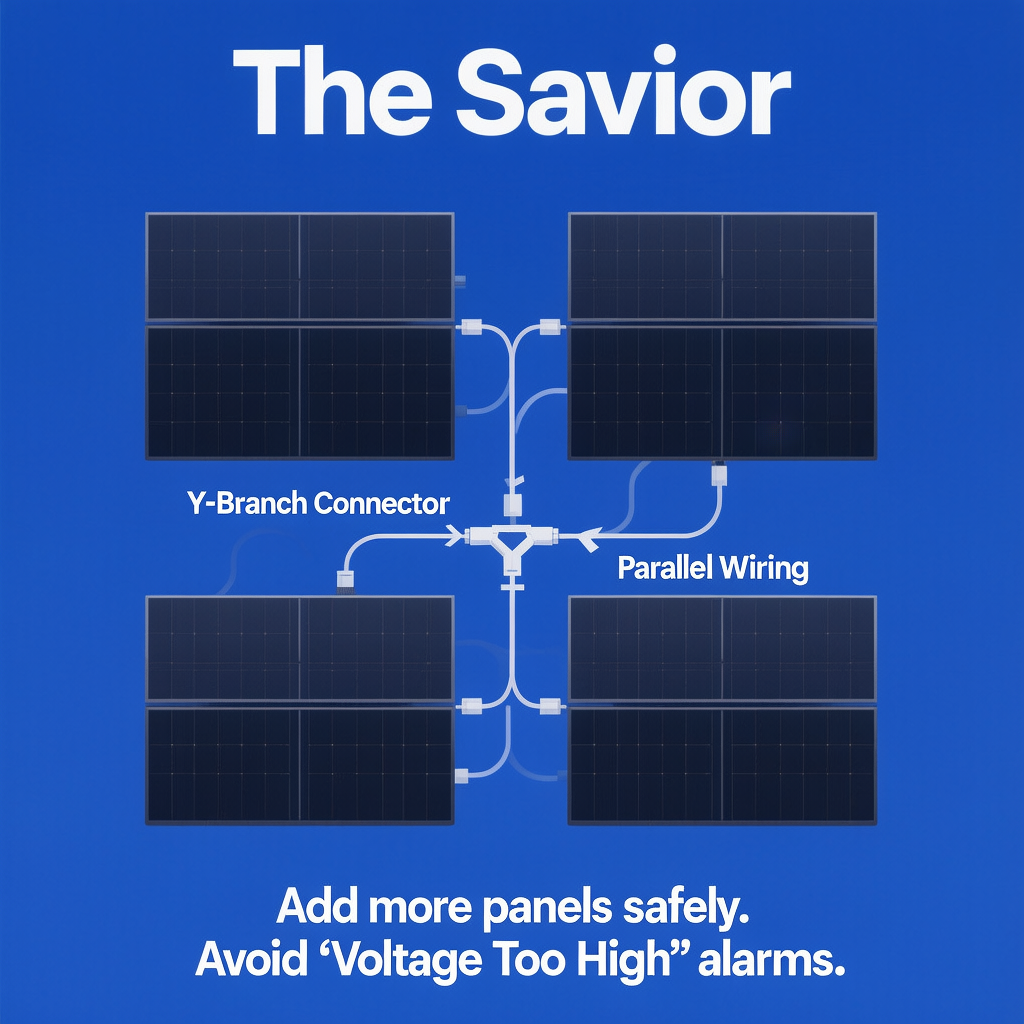

2. Parallel Wiring (The Safe Bet)
- How: Connecting Positive to Positive, and Negative to Negative (usually requires a Y-Branch connector).
- The Math: Voltage stays the same. Amperage Adds Up.
- Panel 1: 20V, 5A.
- Panel 2: 20V, 5A.
- Total: 20V, 10A.
- The Benefit: Since the voltage stays low (20V), you rarely trigger a power station solar input voltage too high alarm. The MPPT controller will just clip any extra amps it can’t handle.
- Related Guide: Series vs parallel solar panels for portable systems
Part 5: Calculating Your Limit (Step-by-Step)
Let’s do the math together. Let’s assume you have an EcoFlow River 2 Pro and you want to connect two 100W panels. We want to ensure we avoid the power station solar input voltage too high scenario.
Step 1: Find the Power Station Limit
- Look at the input port or the manual.
- EcoFlow River 2 Pro Input: 11V-50V, 13A Max.
- The Hard Ceiling: 50V.
Step 2: Find the Solar Panel Voc
- Look at the back sticker of your 100W panel.
- Let’s say Voc = 22.5V.
Step 3: Calculate Series Voltage
- You want to chain two panels.
- 22.5V + 22.5V = 45V.
Step 4: Add the Cold Weather Buffer
- 45V x 1.15 (15% buffer) = 51.75V.
The Verdict:
DANGER. Even though 45V looks safe (it is under 50V), a freezing morning could push it to 51.75V. This would trigger the power station solar input voltage too high fault and potentially fry the unit.
The Solution: You must wire these panels in Parallel. In parallel, the voltage stays at 22.5V (totally safe), and the amps double (which is fine).
- Related Guide: Portable power station specs explained
Part 6: What Actually Breaks? (The Hardware Damage)
When you ignore the power station solar input voltage too high warning, what happens inside the black box? I’ve opened up enough of these to tell you exactly what dies.
1. The Input Capacitors (The “Bang”)
Right behind the input port, there are large electrolytic capacitors designed to smooth out the power. They have a voltage rating (e.g., 63V). If you hit them with 70V because your power station solar input voltage too high, the dielectric fluid inside boils instantly, and the capacitor explodes. This is the loud “POP” you hear.
2. The MOSFETs (The Short Circuit)
The MPPT controller uses MOSFETs (transistors) to switch power on and off thousands of times a second. Excess voltage punches through the silicon gate. Once a MOSFET shorts, it becomes a permanent wire. The next time you plug it in, it might spark or smoke immediately. This is permanent damage caused by power station solar input voltage too high.
- Related Guide: Inverter smells like burning plastic
3. The TVS Diode (The Sacrificial Lamb)
Some high-end units (like newer Bluetti/EcoFlow models) have a TVS (Transient Voltage Suppression) diode. This component is designed to commit suicide to save the rest of the board. If it senses a power station solar input voltage too high spike, it shorts itself to ground, blowing the internal fuse. If this happens, your unit is dead, but it might be repairable by a pro.
Part 7: Troubleshooting the “Over-Voltage” Error
So, you plugged it in, and the screen is flashing “OVERLOAD”, “OVP” (Over Voltage Protection), or an Error Code indicating power station solar input voltage too high. Is it dead?
Step 1: Unplug Immediately
Do not “wait and see.” Pull the yellow/black/barrel plug out instantly.
Step 2: Check the Voltage Source
Use a multimeter. Measure the voltage coming from your solar cable.
- If it reads higher than the Max Input printed on your unit, you found the problem: power station solar input voltage too high.
- External Resource: Fluke Multimeter Safety (Nofollow)
Step 3: The “Cool Down” Reset
Sometimes, the OVP (Protection) is just software protecting you from power station solar input voltage too high.
- Disconnect everything.
- Turn the unit OFF.
- Let it sit for 30 minutes to drain residual capacitor charge.
- Turn it back on (with nothing connected).
- If the error code is gone, you got lucky. The software caught the power station solar input voltage too high condition before the hardware melted.
- Re-configure your panels to Parallel before plugging them back in.
Step 4: The “Smoke Test”
If the unit won’t turn on, or if it still shows “Input Error” with nothing plugged in, the internal hardware is fried due to the power station solar input voltage too high event.
- Related Guide: Portable power station troubleshooting
Part 8: The “Over-Paneling” Myth (Amps vs. Volts)
This is where people get confused. You will often hear people say, “I am over-paneling my system.”
Over-Paneling (Safe):
This means connecting more Wattage/Amperage than the unit can use.
- Example: Connecting 400W of panels to a unit that only accepts 200W.
- Result: The MPPT controller will just take the 200W it needs and ignore the rest. This is safe (as long as voltage is low) and is actually great for cloudy days.
- Related Guide: Portable power station MPPT solar input
Over-Volting (Deadly):
This means connecting more Voltage than the unit can handle.
- Example: Connecting 60V to a 50V input.
- Result: Power station solar input voltage too high error -> Hardware death.
Technician’s Rule: You can Over-Amp, but you can never Over-Volt. Avoid the power station solar input voltage too high error at all costs.
Part 9: FAQ – User Scenarios
Q: My panel says “24V System” but the Voc is 45V. Is this safe for my 30V power station?
A: NO. “24V System” is just a marketing term for panels meant to charge 24V batteries. The actual Voc is 45V. If your power station limit is 30V, connecting this panel will instantly destroy your charge controller due to power station solar input voltage too high. Always read the fine print spec sticker, not the marketing name.
Q: Can I use a Step-Down Converter (Buck Converter) to lower the voltage?
A: Technically, yes. You can buy a DC-DC Buck Converter that takes 60V and steps it down to 24V. However, this adds a point of failure, generates heat, and reduces efficiency. It is usually smarter to just re-wire your panels in Parallel to avoid power station solar input voltage too high.
Q: Why does my EcoFlow accept 60V but my Jackery only accepts 30V?
A: It depends on the architecture of the MPPT controller inside. Higher voltage components cost more money. Larger units (like the Delta Pro or AC200MAX) are designed for high-voltage residential panels (up to 150V), while smaller units are designed for small 12V portable panels. Exceeding these specific limits will cause a power station solar input voltage too high failure.
Q: I have the “Solar Input Voltage Too High” error, but my voltage is within limits. Why?
A: Check for “Ghost Voltage” spikes from inductive loads, or check if your multimeter is calibrated. Also, reset the unit. Sometimes a firmware glitch causes a false positive OVP (Over Voltage Protection) trigger, mimicking a power station solar input voltage too high event.
Q: Does the warranty cover over-voltage damage?
A: No. Almost every manufacturer (Jackery, EcoFlow, Bluetti) specifically excludes “Over-Voltage” or “Reverse Polarity” damage from their warranty. They can tell, too—when they open the unit, the blown capacitors are a dead giveaway of user error caused by power station solar input voltage too high.
Conclusion: Respect the Voc
If you take one thing away from this guide, let it be this: Voltage is the one number you cannot cheat.
Dealing with a power station solar input voltage too high issue is heartbreaking because it is usually preventable. It isn’t a factory defect; it’s a math error.
- Always look at Voc (not Vmp).
- Add a 15% buffer for cold weather.
- When in doubt, wire in Parallel.
Solar power is amazing, but it obeys the laws of physics. Respect the input limits of your gear, and it will keep your lights on for years. If you ignore them and trigger a power station solar input voltage too high event, you’ll just have a very heavy, very expensive doorstop.
