Crimping a photovoltaic connector requires the exact connector manufacturer’s compatible contacts, cable specifications, tooling and assembly instructions. A part advertised as “MC4-compatible” is not proof that mixed brands are approved to mate.
Editorial correction: Earlier versions included unsupported testing, experience or performance claims. This research guide replaces those claims. Examples below are calculations, not measurements made by Wild Smart Gear.
Identify all connector parts
Match connector family, contact, seal, cable conductor cross-section and outer diameter. Confirm permitted wire type and the product’s installation instructions. Similar housings can conceal different contacts or sealing requirements.
Prefer preassembled manufacturer-approved cables if you do not have the specified tooling and competence. Incorrect workmanship can create heating, arcing or water ingress.
Use the documented assembly process
The maker specifies strip length, crimp die, tool setting, insertion, locking and tightening requirements for the particular product. Do not transfer dimensions or torque from another family. Keep seals clean and avoid damaging conductor strands.
Follow the documented inspection requirements. A simple tug alone does not certify electrical resistance, sealing and full assembly. Do not use pliers as a substitute for a specified crimping tool.
Work with the system properly isolated
Follow panel and equipment shutdown/isolation instructions. PV modules can generate voltage in light. Do not assemble, separate or probe exposed connectors while the circuit is carrying load. Use a qualified installer when the isolation or electrical work is outside your competence.

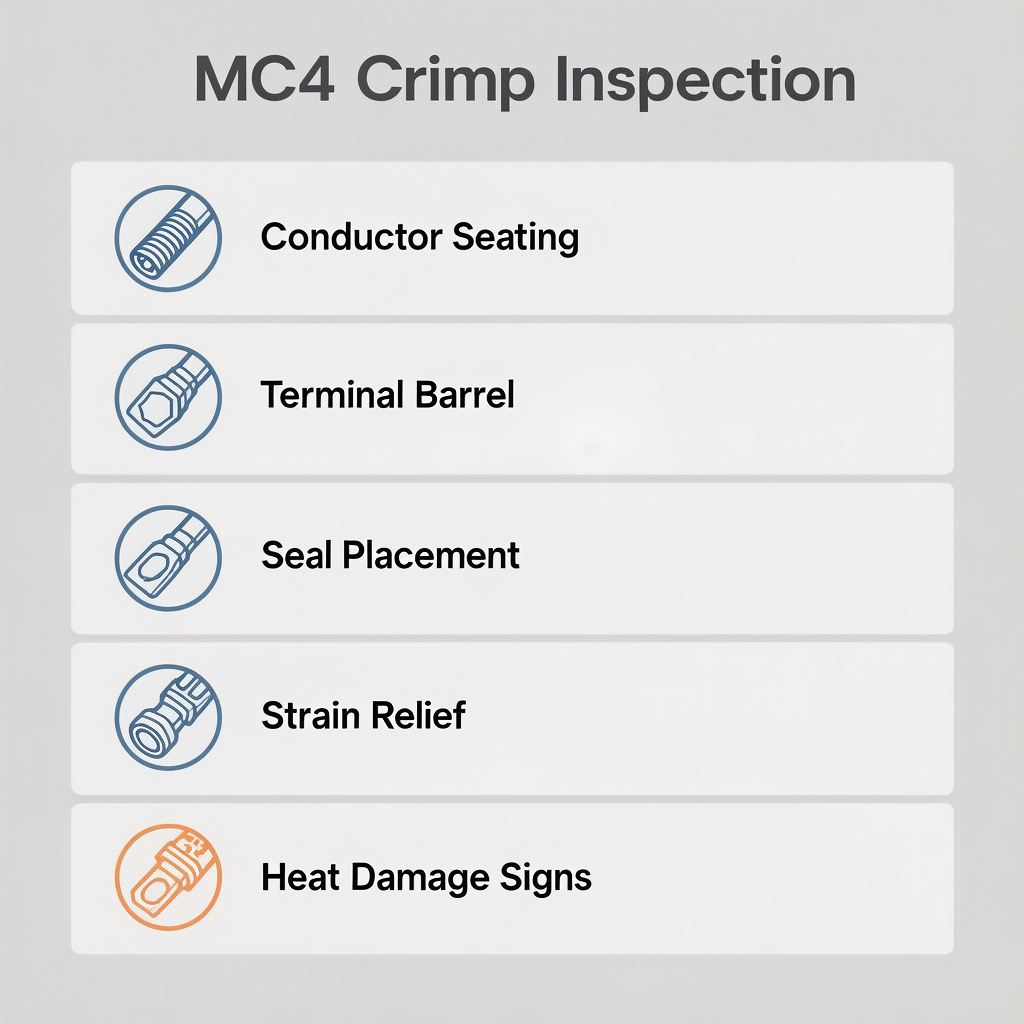

Check before commissioning
- Matching connector family and approved mating combination.
- Cable dimensions and contacts within the stated range.
- Specified crimp and complete conductor insertion.
- Correct polarity, engagement, seal and strain relief.
- Final checks required by the component and system manufacturers.
