Power Station Solar Charging Slow? 7 Proven Fixes & 70% Rule

The “100 Watt” Myth: Why Am I Only Getting 60W?

You bought a premium “100W” solar panel. You spent good money on it. You take it out of the box, lay it flat on the ground on a sunny afternoon, plug it into your portable power station, and wait to see those triple digits on the display.

The screen lights up: 68 Watts.

You check the connections. You wipe the dust off. You stare at the sun. Still 68 Watts. Is your panel broken? Is your battery defective? Did you get scammed?

If your power station solar charging slow experience feels disappointing, you are not alone. This is the single most common complaint from new off-grid users. But here is the technician’s truth: Your equipment is likely working perfectly.

The “Rated Watts” printed on the box are a theoretical maximum achieved in a climate-controlled laboratory flash test known as “Standard Test Conditions” (STC). In the real world—where there is heat, dust, atmosphere, and physics—you will rarely see that number.

In this comprehensive guide, I will explain exactly why your power station solar charging slow issue is happening. I will teach you the “70% Rule” that technicians use to manage expectations, and I will show you 7 specific tweaks (angle, temperature, and wiring) that can squeeze an extra 15% out of your setup.

Technician’s Rule: Solar is not a digital on/off switch. It is an analog fire hose. If there is a kink in the hose (heat), a leak (cable resistance), or low pressure (bad angle), the flow slows down immediately.

Part 1: The “70% Rule” (Managing Reality)

Before we start troubleshooting hardware for a power station solar charging slow fault, we need to reset your expectations. If you call customer support because your 100W panel is producing 70W, they will tell you it is normal. Why?

The Lab vs. Reality: STC vs. NOCT

Solar panels are rated under STC (Standard Test Conditions). This is the industry standard for marketing, but it is deceptive for real-world use.

• Light Intensity: 1000W/m² (Perfect, blazing brightness).
• Temperature: 25°C (77°F) Cell Temperature (Not air temp—this is crucial. Keeping a black panel at 77°F while blasting it with light requires liquid cooling in a lab).
• Air Mass: 1.5 (Simulating clear air at sea level).

A more realistic rating is NOCT (Nominal Operating Cell Temperature), which accounts for wind and heat. NOCT ratings are usually 70-75% of STC.

Real World Conditions:

• Heat Loss: As soon as you put a black panel in the sun, it heats up to 140°F (60°C). Heat kills efficiency. This alone costs you 15-20% of your power.
• Atmospheric Loss: Humidity, dust, and the angle of the sun through the ozone layer eat another 5-10%.
• Conversion Loss: Your MPPT controller and cables lose another 5% in the DC-to-DC conversion process.

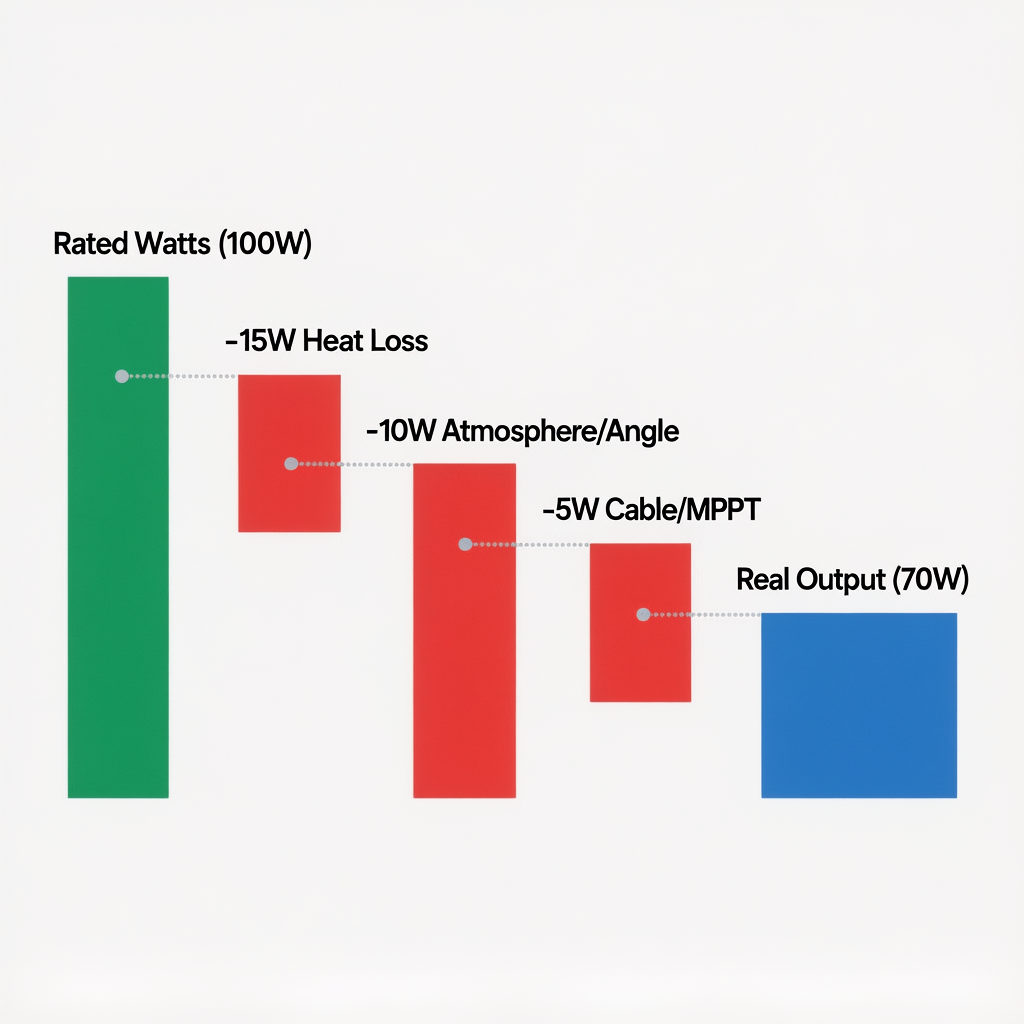

The Math:
100W (Rated) – 15W (Heat) – 10W (Atmosphere) – 5W (Cables/MPPT) = 70 Watts.

The Verdict: If you are seeing 70-75% of the rated wattage, your system is healthy. If you are seeing under 50%, then you definitely have a power station solar charging slow problem that needs fixing.

Part 2: The “Slow Charging” Troubleshooting Table

Why is your specific setup underperforming? Use this technician’s matrix to diagnose your power station solar charging slow cause.

Factor	Impact on Speed	Why It Happens	The Fix
Angle of Sun	High (20-40% Loss)	If sun rays hit at an angle, they reflect off the glass instead of penetrating.	Tilt panel so it is exactly perpendicular (90°) to the sun.
Temperature	Medium (10-20% Loss)	Hot silicon has higher resistance. Black panels get HOT.	Elevate panel off the ground for airflow. Do not lay on hot asphalt.
Dirty Panel	Low (5-10% Loss)	Pollen, dust, or fingerprints block photons.	Wipe with a microfiber cloth and water.
Partial Shade	Critical (50-90% Loss)	One leaf blocks current for the entire string (Series effect).	Move panel to 100% clear sky. Watch out for shadows from cables!
Thin Cables	Medium (10-15% Loss)	Voltage drop over long, thin extension cords turns power into heat.	Use 10AWG cables for runs over 20 feet.
Window Glass	High (30-50% Loss)	Charging through a car window or house window blocks UV/IR spectrum.	Move panel OUTSIDE. Never charge through glass.
Battery SOC	Variable (0-100% Loss)	BMS slows charging when battery is nearly full (>80%).	This is normal “CV Mode.” You cannot fix this.

Part 3: Deep Dive – The Angle of Incidence

This is the easiest way to fix a power station solar charging slow issue for free. Most beginners lay their foldable panels flat on the ground. Unless you are on the Equator at noon, this is wrong.

The Physics of Reflection

Light behaves like a billiard ball. If it hits the glass surface of your solar panel at a steep angle (45 degrees), a significant portion of the photons will bounce off (reflection) rather than punch through to the silicon cells (absorption).
To maximize power, the sun’s rays must hit the panel at a 90-degree perpendicular angle.

The “Azimuth” and “Zenith”

You need to adjust two angles:

1. Azimuth (Compass Direction): In the Northern Hemisphere, face your panels True South. Not magnetic south, but true south. If you are off by 15 degrees east or west, you lose about 5% efficiency.
2. Zenith (Tilt Up/Down): This changes with the seasons. In winter, the sun is low, so your panels should be nearly vertical. In summer, the sun is high, so they should be nearly flat.

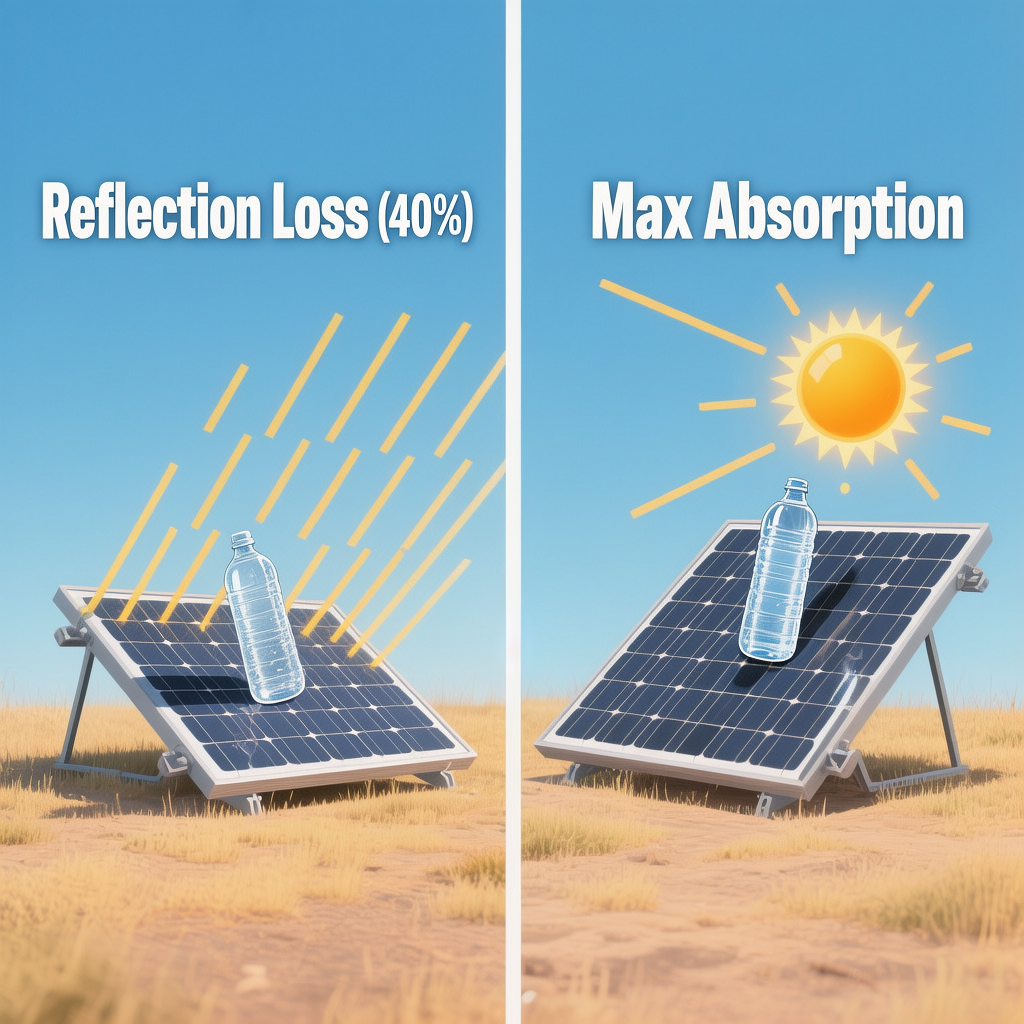

The “Water Bottle” Trick

How do you know if your angle is causing the power station solar charging slow problem?

• Place a water bottle on the face of the panel.
• Look at the shadow cast by the bottle.
• Adjust the tilt and rotation of the panel until the bottle casts no shadow (or a perfect circle directly beneath it).
• This confirms you are perfectly aligned with the sun vector.
• External Resource: NREL Solar Position Algorithm (Nofollow)

Part 4: The Heat Paradox (Why Summer Charging Sucks)

It is counterintuitive. “It’s a hot, bright summer day! Why is my power station solar charging slow?”

Solar panels love light, but they hate heat. This is a chemical property of silicon semiconductors.

• Temperature Coefficient: Look at your panel’s spec sheet for “Pmax Temperature Coefficient.” It is usually -0.4% / °C.
• The Translation: For every degree Celsius the panel rises above 25°C, it loses 0.4% of its power.
• The Math: On a 95°F (35°C) day, the black surface of a solar panel can easily hit 165°F (75°C). That is 50 degrees above the standard.
  • 50 degrees x 0.4% = 20% Power Loss.

The Technician’s Fix:
You can’t change the sun, but you can change the airflow.

1. Air Gap: Never lay flexible panels directly on a car hood or hot asphalt. The conductive heat transfer is massive. Always use the kickstands to create an air gap underneath.
2. Wind: Even a light breeze cooling the back of the panel can recover 5-10% of your lost watts, fixing the power station solar charging slow trend.
3. Water: Warning: Some users spray water on panels. While this works instantly, it risks Thermal Shock, shattering the tempered glass. Do not do this.

• Related Guide: Solar panels for off-grid camping

Part 5: MPPT vs. PWM (The Controller Factor)

Not all power stations are created equal. If you are using an older unit (like a Jackery Explorer 240 or a DIY setup), your power station solar charging slow issue might be the controller itself.

PWM (Pulse Width Modulation)

This is old technology. A PWM controller acts like a switch that turns on and off rapidly to hold the battery voltage.

• The Problem: It drags the solar panel voltage down to the battery voltage. If your panel is 18V and your battery is 12V, the PWM controller throws away the extra 6V.
• The Loss: You lose about 20-30% of your potential energy instantly.

MPPT (Maximum Power Point Tracking)

This is modern technology found in EcoFlow, Bluetti, and newer Jackery Pro models.

• The Logic: It takes the 18V, converts the excess voltage into extra Amps, and feeds the battery exactly what it needs.
• The Benefit: It is 98% efficient.

The “Sweep” Delay
Sometimes, users think their power station solar charging slow is a fault because the watts fluctuate. MPPT controllers perform a “Sweep” every few minutes. They stop charging for a split second, scan the panel to find the best voltage/amp mix, and then ramp back up. This fluctuation is normal intelligence, not a failure.

• Related Guide: Portable power station MPPT solar input

---

Part 6: Cable Resistance (The “Extension Cord” Trap)

You parked your van in the shade (smart) and ran a 50-foot extension cable to your solar panels in the sun (also smart). But now you have a power station solar charging slow problem.

Why? Voltage Drop.
DC electricity struggles to travel long distances, especially at the low voltages (18V) of portable panels. The wire itself acts as a resistor, turning your precious solar energy into heat before it ever reaches the battery.

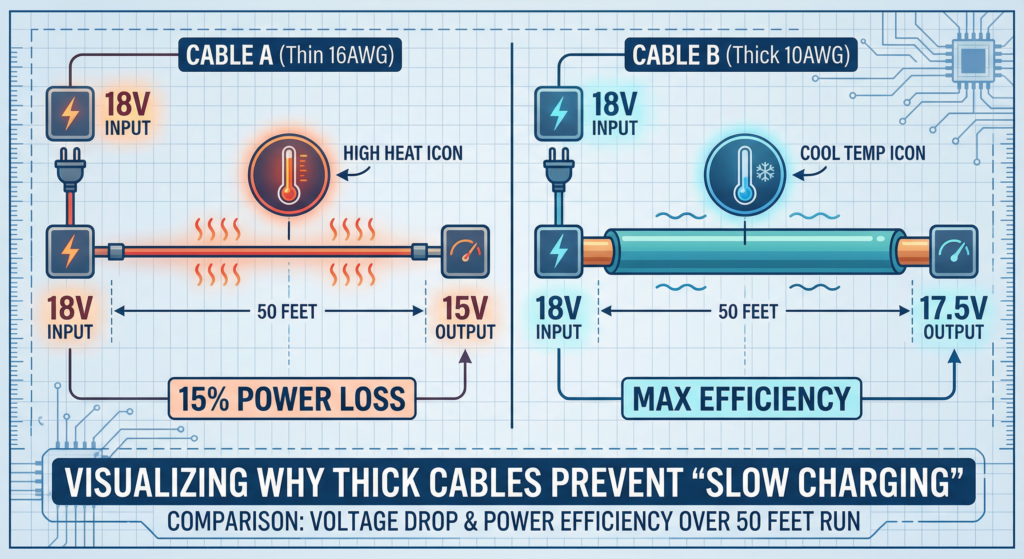

The AWG Math

• 14AWG or 16AWG: These thin cables are fine for 10 feet. At 50 feet, they cause massive loss.
• 10AWG: This is thick cable. It minimizes resistance.

Example:

• Scenario: 100W Panel (18V, 5.5A) with 50ft of thin 16AWG wire.
• Result: Voltage drops from 18V to 15V. Power drops from 100W to 83W. You lost 17% just in the wire!

The Fix:

1. Shorten the run: Move the battery closer to the panels.
2. Thicken the wire: Buy 10AWG solar extension cables.
3. Increase Voltage: Wire two panels in Series. High voltage travels better than low voltage. 36V travels 50 feet much more efficiently than 18V, instantly solving the power station solar charging slow issue.

• Related Guide: How to crimp MC4 connectors

---

Part 7: The “Window” Mistake

I see this on Instagram all the time. Van lifers putting flexible panels on their dashboard inside the windshield.

Glass is a filter. Modern car windshields and dual-pane home windows are engineered with Low-E coatings to block UV and Infrared heat to keep the car/house cool.

• Solar panels need that spectrum to generate power.
• Placing a panel behind glass cuts output by 30% to 50% instantly.
• The Rule: If you want full power, the panel must be outside, naked to the air. No glass, no insect screens, no plastic sheets. Using a panel behind glass is a guaranteed recipe for power station solar charging slow performance.
• External Resource: PVEducation: Intensity of Solar Radiation (Nofollow)

---

Part 8: The “Pass-Through” Confusion (Net Metering)

Sometimes, the power station solar charging slow issue is actually a math error in the user’s head regarding “Pass-Through Charging.”

The Scenario:

• Solar Input: 100W.
• Output (running a Starlink + Laptop): 80W.
• Display Reading: +20W.

The Complaint: “Why is it only charging at 20W? I have a 100W panel!”

The Reality: The screen on many older units shows the Net Positive into the battery.

• 100W (In) – 80W (Out) = 20W (To Battery).
• Your solar is working perfectly. It is powering your gear and putting the leftovers into the battery.
• Fix: Turn off all AC/DC outputs. Watch the input number jump back up to 100W. This confirms there is no power station solar charging slow fault.
• Related Guide: Can you charge a portable power station while using it?

---

Part 9: Battery State of Charge (The “CV” Curve)

Sometimes, the slow speed is intentional. It is the BMS saying “I’m full.”

Lithium charging has two distinct stages:

1. CC (Constant Current): From 0% to about 80%. The battery takes everything you can give it. Max speed.
2. CV (Constant Voltage): From 80% to 100%. The BMS throttles the speed. It slowly reduces the amperage to safely top off the cells without overheating.

The Symptom:

• At 40% battery: Input is 150W (Fast).
• At 90% battery: Input drops to 30W (Slow).
• Conclusion: This is normal behavior. Do not panic. You cannot force it to charge faster during the final 20% without damaging the lithium cells. If you need speed, stop worrying about the last 10% and just cycle between 20-80%.
• Related Guide: Portable power station specs explained

---

Part 10: Brand-Specific Charging Modes

Some modern power stations have software settings that accidentally cause power station solar charging slow symptoms. Check your app.

EcoFlow (Delta / River)

• Custom Charging Watts: In the EcoFlow app, there is a slider for “AC Charge Speed” and sometimes “DC Input Limits.” If you set this to “Slow” or “Silent Mode” to reduce fan noise, the unit will artificially cap the solar input.
• Cigarette Lighter Limit: If the unit thinks the solar panel is a car charger (because the voltage is close to 12V), it might cap the input at 8 Amps. Use the XT60i connector (the one with the third pin) to signal it is Solar.

Bluetti (EB / AC)

• Standard vs. Turbo: Bluetti units often have “Standard,” “Silent,” and “Turbo” charging modes in the settings. “Silent” mode aggressively throttles input to keep the fans off. Switch to “Standard” or “Turbo” to fix power station solar charging slow issues.

Jackery (Explorer)

• Hardware Limits: Older Jackery units (Explorer 1000/500) have hard-coded input limits (e.g., roughly 160W max for the Explorer 1000, regardless of how many panels you attach). This isn’t a bug; it’s a hardware safety limit.

---

Part 11: FAQ – User Questions About Slow Solar Charging

Q: Can I hose down my solar panels to cool them off and get more power?
A: Do not do this. While cooler panels produce more power, spraying cold water on hot glass (150°F) can cause Thermal Shock. The tempered glass can shatter instantly. Let them cool naturally by improving airflow under the panel to fix power station solar charging slow issues safely.

Q: My panel is rated 200W but I’m getting 0W. Is that “slow”?
A: No, 0W is a fault, not slow charging. That indicates a connection break, reverse polarity, or voltage mismatch. Check our guide on solar input 0 watts.

Q: Does MPPT really make a difference vs PWM?
A: Massive difference. An MPPT (Maximum Power Point Tracking) controller is 15-30% more efficient than an old PWM controller. If you are using an old-school DIY setup with PWM, switching to MPPT is the single biggest upgrade you can make to fix power station solar charging slow efficiency.

Q: Can I mix different sized panels (100W + 50W)?
A: Only if wired in Parallel (and voltages match). If wired in Series, the 100W panel will be throttled down to the 50W panel’s amperage, effectively turning it into a 50W panel. This causes massive power station solar charging slow losses.

Q: Does cleaning panels really help?
A: Yes. “Soiling Loss” is real. A layer of pollen or fine dust can scatter light before it hits the cell. A quick wipe with a damp microfiber cloth can instantly restore 5-10% wattage.

---

Conclusion: Embrace the 70% Reality

If your power station solar charging slow investigation reveals you are getting 70-80% of rated watts (e.g., 75W from a 100W panel), congratulations—you have a healthy system operating in the real world.

If you are getting less than 50%, follow the checklist:

1. Check your Angle: Use the water bottle trick for perpendicular sun.
2. Check for Shade: Look for that one tiny leaf killing the string.
3. Check the Heat: Get the panel off the hot asphalt.
4. Check the Cable: Shorten it or thicken it to 10AWG.
5. Check the App: Ensure “Silent Mode” isn’t throttling you.

Solar is a game of marginal gains. You fix the angle, you gain 10%. You clean the dust, you gain 5%. You cool the panel, you gain 5%. Suddenly, your power station solar charging slow problem is gone, and you are harvesting free energy like a pro.

For more tips on optimizing your setup, check out our guide on what size solar generator do I need to run a refrigerator or learn how to properly store portable power station for emergencies.
