Power Station Solar Input Voltage Too Low? Shade, Clouds & Fixes

Power station solar input voltage too low is the single most frustrating error message you can see on a cloudy day. You are out camping, the sky is partly overcast, and you glance at your portable power station expecting to see free energy flowing in. Instead, the input screen flickers. It shows “5 Watts,” then drops to “0 Watts.” It tries again. 10 Volts… 0 Volts.

The sun is technically out, and your solar panel is plugged in. So why isn’t it charging?

This is the dreaded power station solar input voltage too low scenario. Unlike “Over-Voltage,” which triggers an instant, scary error code like “E033” or “OVERLOAD,” an under-voltage condition is often a silent failure. The unit simply ignores the solar panel because the electrical pressure (Voltage) isn’t strong enough to push open the “gate” of the charging circuit.

In my 15 years diagnosing off-grid power systems and repairing industrial electronics, I have found this to be the most misunderstood concept in solar charging. Most people obsess over Watts (Power) or Amps (Current). But Voltage is the key. Voltage is the electrical pressure. If you don’t have enough pressure, the valve won’t open, no matter how many Amps are waiting behind it.

If you are currently struggling with a power station solar input voltage too low issue, do not throw away your panels. The fix is usually a simple change in wiring logic, not a change in expensive hardware. In this comprehensive technician’s guide, I will break down how MPPT controllers “think,” why heat and shade kill voltage, and how to use Series wiring to force the charge to start even in bad weather.

Technician’s Rule: A solar panel is not a battery. It does not output constant voltage. It fluctuates wildly based on sun angle, heat, and load. Your job is to keep that fluctuation above the minimum threshold to avoid the power station solar input voltage too low error.

Part 1: The “MPPT Gatekeeper” (Understanding Start-Up Voltage)

To understand why you have a power station solar input voltage too low problem, you need to understand the gatekeeper inside your plastic box: the MPPT Controller (Maximum Power Point Tracking).

Think of the MPPT controller like a heavy steel door with a spring behind it.

• The Battery: Wants to be fed energy.
• The Solar Panel: Is trying to push food (energy) through the door.
• The Start-Up Voltage: This is the specific amount of pressure required to crack the door open.

The “11V” Trap

Most portable power stations (Jackery, EcoFlow, Bluetti) list an input range on their spec sticker like “11V-60V.”

• The Assumption: You think, “Great, my panel puts out 12V, so it will work perfectly.”
• The Reality: The “11V” listed is the minimum operating voltage, but the Start-Up Voltage is often higher (usually 12V or 13V).

When you plug in a panel that is sitting at exactly 12V, the MPPT tries to draw power. As soon as it pulls current, the voltage of the panel sags (this is called Voltage Drop). It drops to 10.5V. The MPPT sees 10.5V, realizes it is below the 11V limit, and shuts the door (Stop Charging). The voltage bounces back to 12V. The MPPT tries again. It drops again.

This “Sag and Bounce” loop is why your screen flickers. It is a loop of the power station solar input voltage too low protection triggering over and over again. Until you raise the input voltage significantly above that floor, the MPPT cannot maintain a stable connection.

• Related Guide: What does MPPT mean on a solar controller?

Part 2: The 5 Main Causes of Power Station Solar Input Voltage Too Low

Why is your voltage dropping below that critical threshold? It is rarely the panel’s fault. It is usually the environment or the physics of silicon semiconductors. Here are the five culprits.

Cause #1: The “12V Panel” Marketing Misnomer

This is the most common cause of the power station solar input voltage too low error. Portable solar panels are often marketed as “12V Panels.” This is a legacy term from the lead-acid battery era.

In reality, a “12V Panel” usually has a Vmp (Voltage at Max Power) of 17V to 18V.

• On a Good Day: 18V is plenty to open the 11V gate of your power station.
• On a Bad Day: Add clouds, heat, or thin cables, and that 18V quickly evaporates down to 11V or 10V. You have zero “headroom.”

When you operate with zero headroom, any minor disturbance results in a power station solar input voltage too low shutdown.

Cause #2: The Heat Factor (Physics is Cruel)

I mentioned in previous articles that cold increases voltage. Well, heat decreases voltage. This is known as the “Temperature Coefficient of Voltage.”

• The Scenario: It is 100°F (38°C) outside. Your black solar panel is baking in the sun. Its internal temperature is likely 150°F (65°C).
• The Drop: For every degree Celsius above 25°C, a solar panel loses voltage efficiency. A super-hot panel might lose 15-20% of its voltage output.
• The Result: Your “18V” panel is now outputting 14.5V. If you have any voltage drop in your cable run, you are dangerously close to the power station solar input voltage too low cutoff.

Cause #3: The Cloudy Day (Amps vs. Volts)

Clouds act like a variable resistor in the sky.

• Thin Clouds: They drop Amperage (Current) significantly, but Voltage stays relatively high. You might see slow charging, but it charges.
• Thick/Dark Clouds: These block the photons needed to excite the electrons and create the “pressure” (Voltage). On a very dark, overcast day, a panel might only generate 10V of pressure. This is physically insufficient to wake up the MPPT, resulting in a power station solar input voltage too low status.

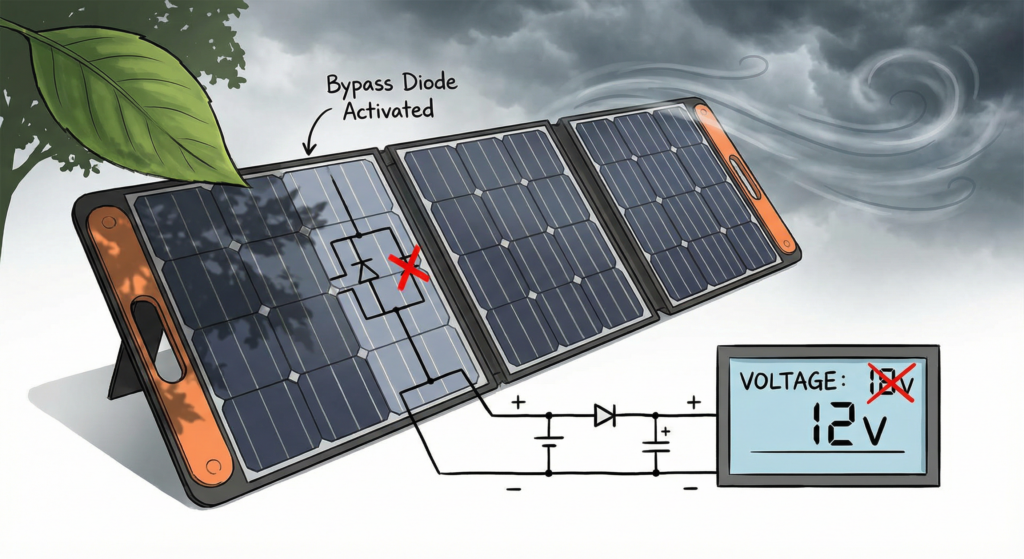

Cause #4: The “Shade” Assassin

Shade is not just “less light.” In a solar panel, shade creates a blockage.

• Most portable panels are wired in Series internally (individual cells daisy-chained).
• If you cover one cell of a 36-cell panel with a single oak leaf, the current for the whole panel is blocked.
• To bypass the blockage, the panel uses “Bypass Diodes.” When these activate, they cut out the shaded section effectively reducing the voltage of the panel by 33% or 50%.
• The Math: 18V panel – 33% (bypass activation) = 12V.
• Now add cable resistance. You are at 11V. The power station solar input voltage too low error triggers, and charging stops completely.
• External Resource: How Bypass Diodes Work (Solar Power World) (Nofollow)

Cause #5: Cable Resistance (The Invisible Loss)

Sometimes, the panel is fine, but the power isn’t reaching the unit. Voltage Drop over distance is a silent killer that leads to power station solar input voltage too low.

• Thin Cables (14AWG or 16AWG): Many cheap solar extension cables use thin copper strands.
• Long Runs: If you are parking in the shade and running 50 feet (15 meters) of cable to the panels in the sun, you are losing voltage along the wire due to resistance.
• The Calculation: You might start with 18V at the panel. After 50 feet of thin wire, you might arrive at the battery input port with only 11.5V.
• The Result: The MPPT applies a load, voltage sags to 10.5V, and you get the power station solar input voltage too low error.
• Related Guide: Solar panels for off-grid camping

Part 3: The Ultimate Fix – Series Wiring to Prevent Power Station Solar Input Voltage Too Low

If you are constantly fighting the power station solar input voltage too low error, there is one guaranteed fix. You need to increase the electrical pressure. You do this by wiring two panels in Series.

This is the technician’s secret weapon for cloudy days and winter charging.

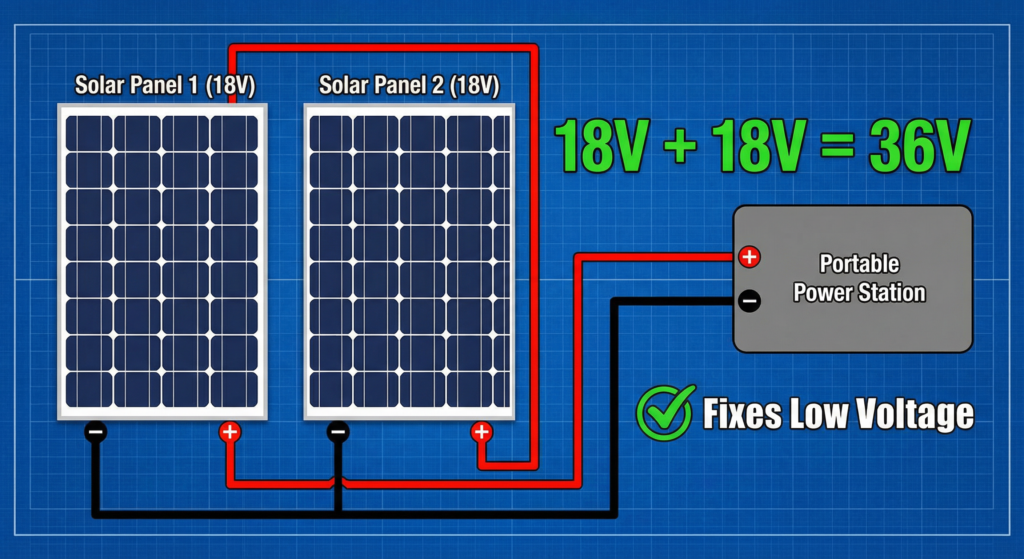

How Series Wiring Fixes Low Voltage

When you connect the Positive of Panel A to the Negative of Panel B, you are stacking their voltages together.

• Scenario A (Single Panel or Parallel):
  • It’s a cloudy day. Panel A is struggling, putting out 13V.
  • The MPPT threshold is 12V.
  • Result: It barely works, flickers, or drops to 0W.
• Scenario B (Series Wiring):
  • It’s cloudy. Panel A is putting out 13V. Panel B is putting out 13V.
  • Series Math: 13V + 13V = 26V.
  • The Result: 26V is way above the 12V threshold. The MPPT wakes up instantly and starts harvesting whatever power is available.

Technician’s Note: Even if the amperage is low (because of the clouds), Series wiring ensures the voltage is high enough to keep the MPPT door open. This is how you get 20W or 30W on a cloudy day instead of 0W and a power station solar input voltage too low error.

• Related Guide: Series vs parallel solar panels for portable systems

Part 4: The “Parallel” Pitfall for Low Voltage

Many YouTubers and influencers tell you to “Wire in Parallel” because it handles shading better. While that is partially true for amperage, Parallel wiring is terrible for power station solar input voltage too low issues.

• Parallel Math: Voltage stays the same. Amps add up.
• If you have two panels, and both are struggling at 13V because of heat or clouds, wiring them in parallel gives you… 13V.
• You have done nothing to increase the electrical pressure. You are still right on the edge of the failure threshold. You have doubled your potential current, but if the door is locked because of power station solar input voltage too low, that current cannot enter the battery.

When to use Parallel: Only use Parallel if your voltage is already high enough (e.g., using big 40V residential panels) and you want to maximize amps. For small portable panels (100W/160W/200W), Series is usually better for consistency in variable weather.

Part 5: Brand-Specific Voltage Quirks

Not all MPPT controllers are created equal. Some are more sensitive to power station solar input voltage too low than others. Knowing your brand’s specific “Wake Up” voltage is critical.

EcoFlow (Delta & River Series)

• High Start-Up: The larger Delta units (Delta Max/Pro) prefer higher voltage. They struggle with single 100W panels (18V) in less-than-perfect conditions. They perform significantly better with 2 or 3 panels in Series (36V-54V).
• The “Car” Confusion: If voltage drops near 12V-13V, the unit might confuse the solar panel for a “Car Charger.” It might limit the input to 8 Amps artificially, or show a power station solar input voltage too low status if it fails to negotiate the connection.

Jackery (Explorer Series)

• Low Threshold: Jackery units are designed for their specific “SolarSaga” panels. They generally have a forgiving lower threshold (around 12V) but lack the sophisticated MPPT tracking of competitors. If a Jackery shows power station solar input voltage too low (blinking input light), it usually means the connection at the 8mm port is loose or the panel is defective.

Bluetti (EB & AC Series)

• Strict Logic: Bluetti controllers are precise. If the spec says “12V Start,” it means 12.0V. If you provide 11.9V, it stays off. They benefit greatly from Series wiring to get the voltage up into the 30V-40V sweet spot. The power station solar input voltage too low error is very common on the EB3A when using single foldable panels in the evening.

Part 6: Advanced Troubleshooting Steps for Power Station Solar Input Voltage Too Low

If you have tried Series wiring and you still see power station solar input voltage too low (0 Watts), follow this technician workflow to isolate the fault.

Step 1: Check the Voc (Open Circuit Voltage)

• Unplug the panel from the unit.
• Use a multimeter set to DC Volts. Measure the voltage of the panel directly in the sun.
• If it reads under 15V for a standard “12V” panel, the panel itself is likely defective (blown diodes or internal corrosion). A healthy panel should read 18V-22V.
• External Resource: Fluke: How to measure DC Voltage (Nofollow)

Step 2: Check the Bypass Diodes

• Open the junction box on the back of the panel (if accessible).
• Look for the diodes (small cylindrical components). Are they burnt, cracked, or blackened?
• A shorted bypass diode can permanently drop the panel voltage by half, guaranteeing a power station solar input voltage too low error forever.

Step 3: The “Car Charger” Test

• Plug the unit into your car’s 12V cigarette lighter while the engine is running.
• Does it charge?
• Car sockets provide roughly 13V-14V. If the unit charges from the car but not your solar panel, your power station is fine. The issue is definitely that your solar panel is not providing enough Voltage to match the car’s output.

Step 4: Clean the Panel

• It sounds stupid, but a layer of pollen or dust can reduce output by 10%. On a cloudy day, that 10% might be the difference between hitting the 11V threshold or failing with power station solar input voltage too low.
• Related Guide: Portable power station troubleshooting

Part 7: FAQ – User Solutions for Low Voltage Issues

Q: Can I mix different panels to increase voltage and stop the error?
A: Yes, but be careful. If you wire a 100W panel (18V) in series with a 50W panel (18V), the voltages add up (36V), which fixes the power station solar input voltage too low issue immediately. However, the amperage will be dragged down to the lowest panel’s limit. It is not efficient for max power, but it works in a pinch to get the charging started when voltage is the bottleneck.

Q: What is a “DC-DC Boost Converter”? Can that fix the low voltage error?
A: Yes, this is the “Nuclear Option” for technicians. You can buy a step-up (boost) converter that takes variable 10V-18V input and outputs a constant 24V. This will trick the MPPT into thinking it is connected to a strong source and eliminates the power station solar input voltage too low message. However, you lose about 10-15% of power to heat inefficiency. It is usually better, cheaper, and more reliable to just add another panel in Series.

Q: Does “MPPT” mean it can boost low voltage automatically?
A: No. Most portable power station MPPTs are “Buck” controllers (Step-Down). They can take High Voltage (e.g., 40V) and step it down to battery voltage (e.g., 12V). They cannot take Low Voltage (10V) and step it up to battery voltage. If input voltage < battery voltage, current does not flow. This is why power station solar input voltage too low is such a hard stop for the system.

Q: My screen says “Input Voltage Low” even when plugged into the wall outlet?
A: If you see the power station solar input voltage too low equivalent on AC wall power, your internal power supply is failing or your grid voltage is sagging (brownout). This is a hardware fault, not a solar setting issue, and likely requires a warranty repair.

Conclusion: Voltage is the Key to Reliability

The power station solar input voltage too low error is essentially the MPPT controller saying, “I don’t have enough pressure to do my job.”

It isn’t being difficult; it is obeying the laws of physics. As a user, your goal is to give it as much pressure (Voltage) as possible to ensure reliability.

1. Don’t trust “12V” panels on their own in bad weather or evening light.
2. Use Series Wiring whenever possible to create a massive voltage buffer (aim for 30V+).
3. Keep panels cool and unshaded to prevent voltage sag.
4. Use thick cables (10AWG) to prevent voltage loss over distance.

By building a system with high “headroom”—aiming for 30V-40V instead of scraping by at 15V—you will never see that flickering 0W screen or the power station solar input voltage too low warning again, even when the clouds roll in.

For more technical details on optimizing your setup, read our deep dive on portable power station specs explained or learn how to crimp MC4 connectors to build your own high-efficiency series cables that minimize resistance.
