If you’ve got an mc4 connector stuck, treat it as a safety problem first and a “stubborn plastic” problem second. The biggest mistake is trying to separate MC4s while the circuit is under load, which can cause DC arcing, pitted contacts, and melted housings. If you can’t confidently say it’s de-energized, STOP.
This guide is a Decision Tree + Scenarios setup. You’ll identify the most likely cause, remove load conditions, relieve mechanical binding, then disconnect with the least destructive method available. No wiring instructions. No “just yank it” nonsense.
STOP rules (the non-negotiables)
Before you touch anything, here are the shutdown triggers.
- If the solar system is actively charging an MPPT/inverter and you can’t verify it’s not drawing current, STOP.
- If you see black marks, pitting, melted plastic, or you smell hot electronics, STOP and plan replacement.
- If the connector body is cracked, the cable jacket is cut, or copper is visible, STOP.
- If you’re on a roof edge, ladder, or wet surface and you can’t work safely, STOP.
- If you need metal tools near exposed contacts (or you’re tempted), STOP.
General fire/electrical safety references (not product blogs):
- NFPA: https://www.nfpa.org/
- UL safety context: https://www.ul.com/
What most people assume vs what actually happens
Most people assume “MC4 is low voltage.”
What actually happens is that solar strings can create stubborn DC arcs if you disconnect under load.
Most people assume “stuck = tight.”
What actually happens is usually side-load tension, grit, heat expansion, or a latch that’s not fully released.
Most people assume “pliers solve it.”
What actually happens is cracked housings, deformed latches, and a connector you can’t trust later.
That’s why an mc4 connector stuck event is best handled with a repeatable process, not brute force.
Decision Tree: the safest path for an mc4 connector stuck situation
Follow this in order. Skipping Step 1 is how people melt connectors.
- 1) Is the circuit under load right now? (most important)
- Not sure → STOP. Assume yes.
- Yes → remove load first (see “De-energize safely” below).
- No → go to Step 2
- 2) Is the connector being pulled sideways or twisted by cable routing?
- Yes → relieve tension and align the bodies in-line.
- No → go to Step 3
- 3) Do both latch tabs fully depress?
- No → use a proper MC4 disconnect tool to depress tabs evenly.
- Yes → go to Step 4
- 4) Does it separate with a straight pull and mild twist of the connector body (not the cable)?
- Yes → disconnect and inspect for damage.
- No → go to Step 5
- 5) Do you see heat/arcing damage?
- Yes → STOP and replace the affected connector pair.
- No → treat as contamination/aging; clean exterior, retry with tool, and if still stuck, replace rather than crush.
This decision tree is the “don’t make it worse” answer to mc4 connector stuck.
mc4 connector stuck (H2): De-energize first, or you’re gambling
An MC4 disconnect under load is where failures start.
You don’t need to “do wiring” to make this safer. You need to stop current flow.
Practical, high-level ways to reduce load risk:
- Stop the load: shut down the device drawing from the panels (MPPT controller, inverter, or power station solar charging function).
- Reduce generation: move panels out of sun or cover them (shade helps; it doesn’t make voltage magically disappear).
- Wait a short period for electronics to settle after shutdown.
If your panels are feeding a portable power station, pass-through behavior can keep the system “busy” longer than you expect. If you’re running loads while charging, read: can you charge a portable power station while using it.
Scenario Notebook: what “stuck” usually means (and what to do)
Scenario 1 — Cable tension is binding the latch
This is the most common mc4 connector stuck cause.
Typical signs:
- The connectors are misaligned.
- One side is pulled tight by routing or zip ties.
What works:
- Support both connector bodies and bring them into a straight line.
- Remove strain (temporarily by hand; permanently by better routing/strain relief).
- Depress tabs, then pull straight.
What usually fails:
- Pulling on the cable jacket. That can stress the internal termination.
Scenario 2 — Tabs won’t depress evenly (finger strength isn’t the tool)
Signs:
- One tab compresses; the other barely moves.
- You feel like you need a screwdriver.
What works:
- Use a proper MC4 disconnect tool so both tabs release evenly.
- Keep the pull direction straight.
What usually fails:
- Metal tools slipped into the wrong place.
Scenario 3 — Grit and contamination (the “glued” feel)
Signs:
- Tabs depress.
- Connector bodies creak but don’t move.
What works:
- Brush/air-clean the outside latch area and seam.
- Retry with tool pressure and straight pull.
If you’re still fighting an mc4 connector stuck seam after cleaning, replacement is often cheaper than damage.
Scenario 4 — Heat expansion (stuck at noon, easier later)
Signs:
- It’s worse in direct sun.
- It improves after cooling in shade.
What works:
- Work out of direct sun if possible.
- Let the connector cool slightly, then retry.
Heat cycling also accelerates aging across your system, including batteries (more on chemistry later).
Scenario 5 — Arcing or overheating already occurred
Signs:
- Black marks, pitting, melted edges, or burnt odor.
What works:
- STOP and replace the connector pair.
- Inspect for root cause: loose mating, mismatched “compatible” parts, or disconnecting under load.
If you’ve ever smelled hot plastic at power electronics, the same “don’t ignore it” rule applies: inverter smells like burning plastic.
“If you see X, it usually means Y” (fast diagnostics)
- If you see the connector bodies angled, it usually means tension is binding the latch.
- If you see tabs that flex but don’t snap down, it usually means UV-aged plastic or partial blockage.
- If you see white gritty residue near the seam, it usually means contamination friction.
- If you see pitting or black spots, it usually means arcing/overheating (replacement time).
- If you see separation easier when cool, it usually means thermal expansion is part of the binding.
Numbers walkthrough: why “disconnecting under load” is a real hazard
Let’s use round numbers you’ll see in typical portable solar setups.
A single panel might operate around:
- Vmp ~ 40 V
- Imp ~ 10 A
That’s about:
- Power ~ 400 W
Two panels in series can push the voltage up, while current stays similar:
- ~80 V at ~10 A = 800 W
If an MPPT is actively drawing current and you break a connection, you can sustain an arc as the contacts separate. DC arcs don’t have the zero-crossing behavior AC has, so they can persist longer.
That’s why the first decision in any mc4 connector stuck situation is: “Is it under load?”
For PV fundamentals and safety research context, NREL is a credible source: https://www.nrel.gov/
Tools: what actually helps (and what’s a trap)
What helps:
- MC4 disconnect tool (plastic wrench style): designed to depress latch tabs evenly without crushing.
- Gloves for grip (not for magic electrical protection).
What’s a trap:
- Pliers on the connector body (deforms the housing).
- Screwdrivers as pry bars (slips, cracks plastic, can bridge contacts).
- Twisting the cable instead of the connector body (stresses internal termination).
A clean disconnect is always cheaper than replacing a harness.
Where portable power stations complicate MC4 disconnects
People most often meet MC4 connectors through portable power station solar inputs.
Two practical points:
- A power station MPPT is a load, and it can keep drawing current while the display looks “idle.”
- Some units behave differently during pass-through charging (charging + using), which can keep internal stages active and warm.
If your setup includes charging while running loads, read: can you charge a portable power station while using it.
If the power station fan is roaring during basic solar work, treat it as thermal information: power station inverter fan noise explained.
Input vs output balance (why your battery can still drop while solar is connected)
This isn’t directly an mc4 connector stuck issue, but it’s why people keep systems “live” during troubleshooting.
If your station is powering loads while solar is feeding it:
- Output watts + conversion losses can exceed solar input.
- Battery still discharges.
That can keep the MPPT actively hunting and drawing current. If you’re troubleshooting, simplify: stop big loads, stabilize the system, then handle the connector.
If your solar plan is fridge-focused, you’ll want realistic expectations: best solar generator for refrigerator.
AC vs DC efficiency (and the heat you create while “just testing”)
While you’re sorting solar connectors, people often also plug the station into AC and run AC loads “to see what happens.”
That adds heat:
- Inverter losses when running AC loads.
- Charger heat if you’re also charging from the wall.
If you’re running sensitive electronics, waveform matters. Some devices tolerate modified sine; some don’t. Reference: pure sine wave vs modified sine wave inverter.

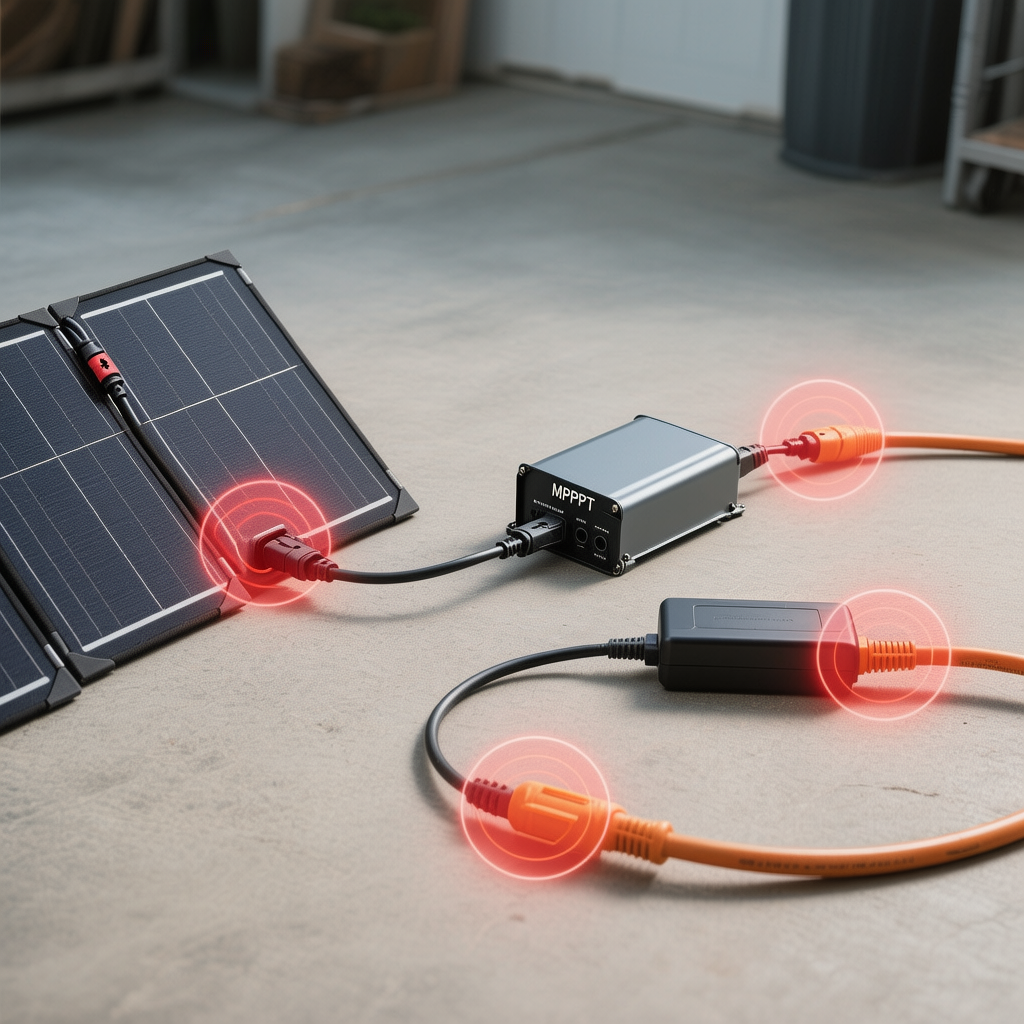

Heat sources checklist (what to touch-check safely)
A stuck connector problem often shows up alongside heat cycles.
Main heat sources in a typical portable solar + power station setup:
- Panel connectors (bad contact = localized heating)
- MPPT input port and internal DC/DC conversion
- Inverter (if AC loads are on)
- Charger brick (if wall charging)
- Battery internal heating during high load/charge
If anything smells hot, stop and isolate the source. Start here: inverter smells like burning plastic.
Cable and outlet risks (yes, they matter even for solar work)
Solar troubleshooting often happens during outages or camping. That’s when people use marginal cords.
- If you’re using an extension cord for charging gear or powering loads, read: portable power station extension cord safety.
- If you’re using a power strip as a “hub,” read: power strip into portable power station safe.
Connection heat is a pattern: plug ends get warm first. Don’t ignore it.
US/UK/AU plug safety (fit and heat only)
This is safety context only—no wiring instructions.
- US outlets (NEMA): worn contacts can grip loosely; loose fit creates resistance and heat.
- UK plugs (BS 1363): robust standard, but cheap adapters can heat under sustained current.
- AU plugs (AS/NZS 3112): adapter fit quality matters; poor fit equals heating.
If a travel adapter warms up or feels loose, remove it from the kit. That’s not “maybe later,” that’s “replace it.”
Authority safety references:
- Electrical Safety First (UK): https://www.electricalsafetyfirst.org.uk/
- Energy Safe Victoria (AU): https://esv.vic.gov.au/
- OSHA electrical safety overview: https://www.osha.gov/electrical
Battery chemistry note: LiFePO4 vs NMC (why heat still matters)
Portable power stations are usually LiFePO4 (LFP) or NMC.
- LFP typically handles cycling and storage better.
- NMC often packs more energy in less space.
Both degrade faster when run hot. If your troubleshooting routine involves running heavy AC loads in direct sun while solar charging, you’re stacking heat sources for no reason.
If you want the practical difference without hype: LiFePO4 vs NMC portable power station.
General battery behavior reference: https://batteryuniversity.com/
mc4 connector stuck: the safest release sequence (no forced pulling)
For an mc4 connector stuck connector, the safe sequence is boring:
- Assume it may be under load until you’ve stopped the load.
- Remove mechanical tension and align bodies.
- Fully depress tabs with the proper tool.
- Pull straight; avoid cable torque.
- Inspect immediately; replace if damaged.
If you keep encountering mc4 connector stuck in the same location, fix the routing/strain relief problem instead of treating it as a one-off.
What this guide does NOT cover
- No instructions for wiring solar strings, opening connector bodies, re-pinning contacts, or changing fuse/breaker placement.
- No rooftop safety plan. If you can’t work safely at height, don’t attempt rooftop troubleshooting.
- No claim that every “MC4-compatible” part mates safely across brands. Compatibility marketing is messy.
If you’re doing solar in an apartment context (balcony/window constraints), use the safety-first reality check: solar generator for apartment and indoor placement basics: portable power station fire safety apartment.
FAQ
mc4 connector stuck
If your mc4 connector stuck connector won’t disconnect, de-load the solar circuit first, relieve cable tension, use an MC4 disconnect tool to fully release tabs, then pull straight. If you see pitting, melting, or burnt smell, stop and replace the connector pair.
Can I disconnect MC4 connectors while the power station is charging?
Avoid it. Charging means the MPPT is likely drawing current. De-load first, then disconnect to reduce arc risk.
Why do MC4 connectors get stuck more over time?
UV aging, heat cycling, and contamination increase friction and reduce latch flexibility, making separation harder.
Do I need a special tool?
A basic MC4 disconnect tool is strongly recommended. It prevents crushed housings and uneven tab release.
What should I inspect after it finally disconnects?
Look for pitting, black marks, melted plastic, cracked latch tabs, and cable strain near the connector. Any damage means replacement is the safe call.
Conclusion
An mc4 connector stuck problem is solved by removing load, removing tension, and releasing the latch cleanly—not by brute force. Treat any heat marks or burnt smell as a STOP condition, and don’t ignore the rest of your setup: cord chains, power strips, and loose NEMA/BS 1363/AS/NZS 3112 adapters can create the next hot spot while you’re focused on the solar side.
