AC vs DC Efficiency Power Station: Which Output Lasts Longer?

The “Entropy” Experiment: Where Did the Power Go?

If you take a standard 1000Wh portable unit and plug a standard iPhone wall charger into the AC outlet, you might get 60 full charges before the battery dies.

If you plug the exact same charging cable into the station’s USB-C port, you will likely achieve 85 full charges.

Same battery. Same phone. Same rated capacity. Where did those 25 missing charges go?

They did not vanish into thin air; they turned into heat. They were the cost of doing business with an inefficient system. In the world of thermodynamics, this is called entropy. In the world of off-grid living, it is called “wasted money.”

When analyzing ac vs dc efficiency power station metrics, we are essentially comparing a direct, pressurized pipeline (DC) against a complex, leaky refinery (AC). Manufacturers rarely explain this distinction on the box. They prefer to list the “Rated Capacity” in large bold letters and let the consumer figure out why their device didn’t run as long as advertised. However, for an off-grid engineer, a digital nomad, or someone relying on backup power for medical devices like CPAP machines, understanding the nuances of ac vs dc efficiency power station data is not just academic trivia—it is the difference between your equipment running all night or shutting off at 4:00 AM.

In this comprehensive, deep-dive technical guide, we will break down the physics of inversion, calculate the hidden “vampire draw” that drains your battery while you sleep, explore inverter topologies, analyze the economics of cabling, and provide 10 specific engineering hacks to stop wasting 25% of your battery life on unnecessary conversion.

Part 1: The Physics of Conversion (Why AC Loses)

To understand why AC is inherently less efficient than DC for battery-powered systems, you must first understand the journey the electron takes to travel from the lithium cell to your device. This isn’t magic; it is electrical engineering. The core conflict in any ac vs dc efficiency power station debate is simply the number of steps involved in the energy transfer and the thermal tax levied at each step.

The DC Path: The “Highway”

Batteries are native Direct Current (DC) devices. Whether it is a lead-acid AGM, a Lithium-Ion (NMC), or a modern LiFePO4 (Lithium Iron Phosphate) bank, energy is stored chemically and released as a steady stream of electrons flowing in one direction. Interestingly, most of your modern electronics—your phone, laptop, LED lights, WiFi router, and monitor—are also native DC devices.

When you use the USB-A, USB-C, or 12V Car Port (Cigarette Lighter) on your power station, the workflow is simple and elegant:

1. Source: Battery (Native DC, usually 12V, 24V, or 48V internal architecture).
2. Regulation: A DC-to-DC Buck Converter steps the voltage down (e.g., from 48V internal voltage to 12V output).
3. Load: Device (Native DC).

The Efficiency Score: DC-to-DC buck conversion is highly efficient. Modern solid-state regulators (VRMs) typically achieve 95% to 98% efficiency. There is very little thermal loss because the current’s waveform doesn’t change; only the pressure (voltage) changes. This is why the DC side is the clear winner in any ac vs dc efficiency power station comparison. The path is direct, clean, and cool.

The AC Path: The “Obstacle Course”

When you plug a device into the AC wall outlet of a battery-powered generator, you are forcing the system to perform complex electrical gymnastics. You are taking a DC source, forcing it to become AC to travel 3 feet through a cord, and usually converting it back to DC for the device.

1. Source: Battery (Native DC).
2. Inversion: The Inverter uses high-speed switching transistors (MOSFETs) arranged in an H-Bridge to chop the DC signal into a stepped wave. It then uses Pulse Width Modulation (PWM) and capacitors to smooth it into a high-voltage Alternating Current sine wave (120V or 240V). This high-frequency switching generates significant heat.
3. Output: The AC Outlet delivers power to your plug.
4. Rectification: Your device’s “Brick” (Wall charger) contains a rectifier bridge and a transformer that converts that AC back down to DC.
5. Load: Device (Native DC).

The Efficiency Score:

• The Inverter is typically 85% efficient (Premium GaN units may hit 90-92%).
• The AC Brick (Rectifier) is typically 85% to 90% efficient.

The Math of the “Double Conversion Trap”:
0.85 (Inverter) × 0.90 (Brick) = 0.765

By using the AC outlet for a DC device, you have effectively lost 23.5% of your total stored energy to heat before a single watt actually powered your device. This implies that for every 1000Wh you bought, you only get 765Wh of work. This demonstrates clearly why ac vs dc efficiency power station calculations are the most critical metric for runtime planning.

For a deeper look at the inverter component itself and why waveform matters (and creates heat), read our technical guide on pure sine wave vs modified sine wave inverters.

Part 2: The “Inverter Tax” & Vampire Draw

The general rule of thumb in electrical engineering is that the AC outlet imposes a minimum 15% Tax on your total capacity compared to DC. However, this is not a flat fee; it is a sliding scale based on the size of the load and the size of the inverter. Understanding this scale is vital for accurate ac vs dc efficiency power station modeling.

To predict your true runtime, you cannot use the marketing numbers on the box. You must use the Engineering Formulas that account for Idle Consumption.

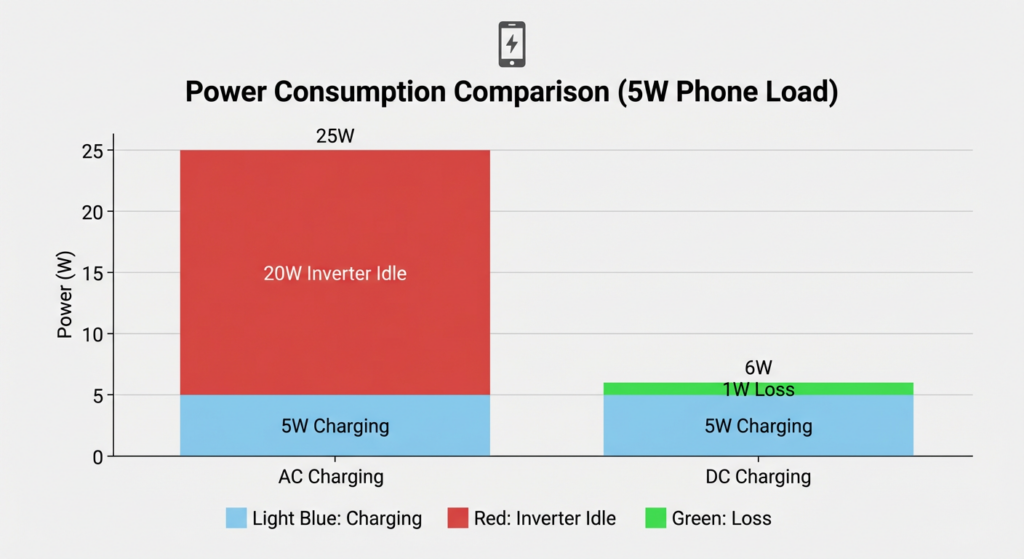

What is Inverter Idle Consumption?

An AC inverter is an active electronic component, not a passive wire. It requires energy just to “exist.” It has cooling fans that need to spin, large capacitors that need pre-charging, and a microcontroller monitoring the sine wave for voltage stability.

Even if you have nothing plugged into the AC outlet, if the AC button is turned “On,” the unit is consuming power. This is often called “Vampire Draw” or “No-Load Current.”

• Small Stations (200-500Wh): Typically consume 5-10W at idle.
• Medium Stations (1000Wh): Typically consume 10-20W at idle.
• Large Home Backup (3000Wh+): Can consume 30-50W at idle.

This idle draw is the silent killer that destroys ac vs dc efficiency power station ratios, especially when powering small devices.

The Engineering Formulas

To calculate true runtime, you cannot use the marketing numbers. You must use the Engineering Formulas.

DC Runtime Formula (The Efficient Path):
Runtime (h) = (Battery Capacity Wh × 0.95) / Device Watts

AC Runtime Formula (The Inefficient Path):
Runtime (h) = (Battery Capacity Wh × 0.85) / (Device Watts + Inverter Idle Draw)

Note the extra variable in the AC formula: Inverter Idle Draw. This is the critical variable that most online calculators miss. For a dedicated tool to do this math for you, check our power station runtime calculator.

Part 3: Deep Dive Case Studies

Let’s run the numbers on three detailed scenarios to see how this efficiency gap translates into hours of lost use. The data clearly shows how ac vs dc efficiency power station metrics impact daily life.

Case Study A: The CPAP Machine (Medical Critical)

This is the most common high-stakes use case where ac vs dc efficiency power station figures matter. A CPAP machine keeps a user breathing at night. Running out of power is not an inconvenience; it is a health risk.

• Battery: 500Wh (Mid-sized portable unit).
• Load: ResMed AirSense 10 (Average 40W pressure draw with heated tube OFF).
• Inverter Idle Draw: 10W.

Calculation 1: Using the AC Wall Plug
We must account for the inverter efficiency (0.85) and the idle draw (10W).
Usable Wh = 500Wh × 0.85 = 425Wh
Total Power Draw = 40W (CPAP) + 10W (Idle) = 50W
Runtime = 425Wh / 50W = 8.5 Hours
Result: You get exactly one night of sleep. If you sleep in, or if the mask leaks (increasing pressure draw), the machine stops.

Calculation 2: Using the DC Converter Cable
We bypass the inverter entirely.
Usable Wh = 500Wh × 0.95 = 475Wh
Total Power Draw = 40W (No Inverter Idle Draw)
Runtime = 475Wh / 40W = 11.87 Hours
Result: You get nearly 12 hours (1.5 nights) of sleep.

Conclusion: Simply buying a $30 DC cable gained you 3.3 hours of runtime from the exact same battery. This aligns with our extensive testing findings in our best portable power station for CPAP camping guide.

Case Study B: Starlink Internet (The Remote Worker)

Starlink is a game-changer for digital nomads, but it is notoriously power-hungry. The standard V2/V3 rectangular dish uses a proprietary router that runs on AC, forcing users to keep their inverters on 24/7. This is a prime example of poor ac vs dc efficiency power station optimization.

• Battery: 2000Wh (Large Unit).
• Load: Starlink V3 (Average 50W).
• Inverter Idle Draw: 25W (Large inverter).

AC Calculation:
Total Draw = 50W (Dish) + 25W (Idle) = 75W
Daily Consumption = 75W × 24h = 1800Wh
Result: Your 2000Wh battery is nearly dead after just 24 hours.

DC Calculation (With 12V Conversion Mod):
Enterprising engineers have figured out how to cut the Starlink cable and wire it to a 12V DC power supply, bypassing the router and the inverter.
Total Draw = 45W (Slightly more efficient router) + 0W (Idle)
Daily Consumption = 45W × 24h = 1080Wh
Result: Your 2000Wh battery still has 50% charge remaining after 24 hours.

This massive discrepancy highlights why analyzing ac vs dc efficiency power station data is the first step when designing systems for remote work. For more on this specific modification, read our Starlink power consumption guide.

Case Study C: The “Phone Charging” Disaster

This scenario illustrates why you should never charge small devices on a large AC inverter.

• Battery: 3000Wh (Home Backup Unit).
• Load: Smart Phone (5W charging).
• Inverter Idle Draw: 40W.

Calculation: Using the AC Brick
Total Draw = 5W (Phone) + 40W (Idle) = 45W
Efficiency Ratio = 5W (Useful) / 45W (Total) = 11.1%

In this ac vs dc efficiency power station nightmare scenario, 89% of your battery energy is wasted just to keep the inverter fans spinning, while only 11% actually enters your phone. You are effectively burning 9 units of energy to deliver 1 unit of work. This is the definition of inefficiency.

Part 4: The Impact of Battery Architecture (12V vs 48V)

Not all power stations are created equal. The internal voltage of the battery pack plays a significant role in ac vs dc efficiency power station results.

The 12V Architecture (Older/Smaller Units)

If a power station uses a 12V battery internally:

• DC Output: Very efficient (12V to 12V is easy).
• AC Output: Very inefficient. Stepping 12V up to 120V (a 10x increase) requires massive current.
  • Physics Check: To produce 1000W AC, a 12V battery must push roughly 90 Amps (accounting for loss). 90 Amps creates significant heat in the internal wiring and MOSFETs, lowering the overall ac vs dc efficiency power station score.

The 48V Architecture (Modern/Large Units)

Most modern solar generators (EcoFlow Delta, Bluetti AC series) use 48V or 51.2V internal batteries.

• AC Output: More efficient. Stepping 48V to 120V is easier (only 2.5x increase), generating less heat.
• DC Output: Slightly less efficient than 12V native systems because it must step down from 48V to 12V. However, the loss is negligible compared to inverter losses.

When reading our portable power station reviews, looking for “48V architecture” is a good indicator of better overall thermal performance and AC efficiency.

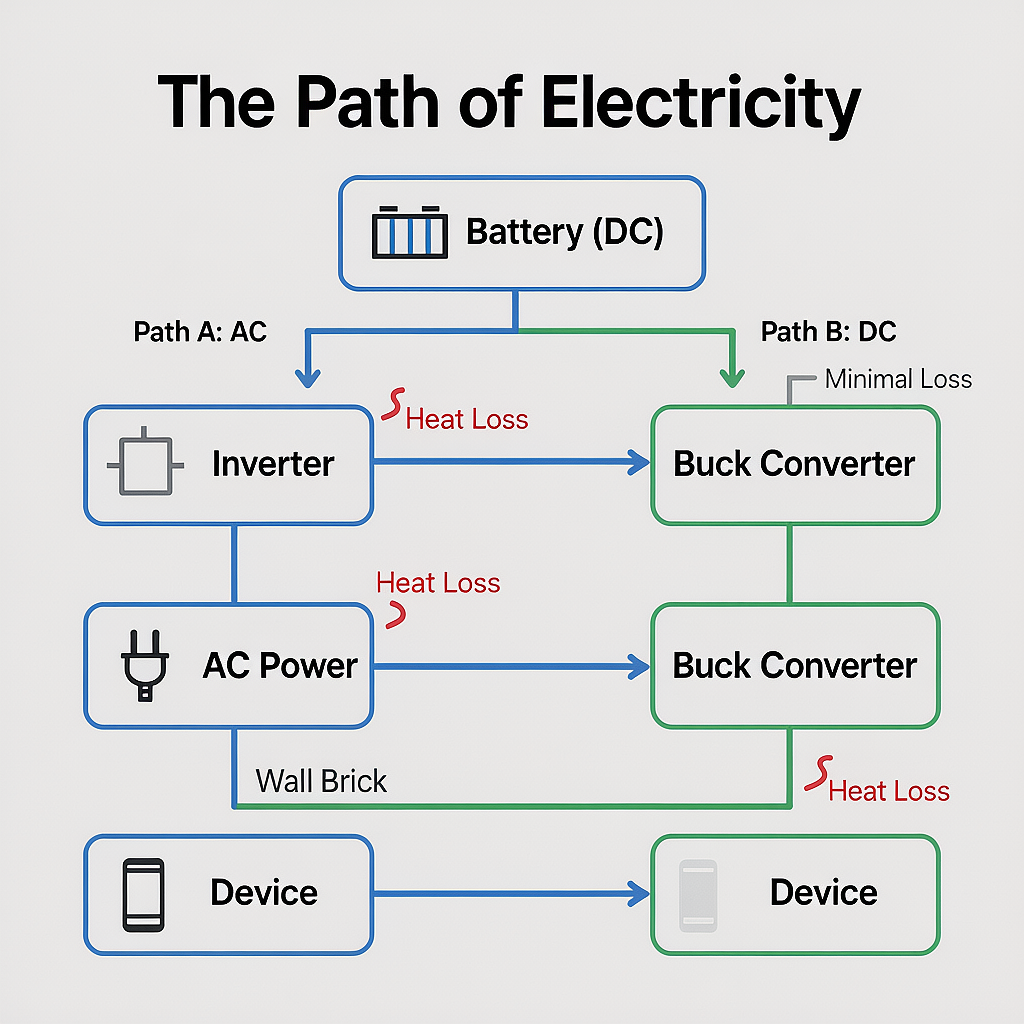

Part 5: Thermodynamics of “Double Conversion”

Why is the AC brick so bad? Many people assume that because the brick gets warm, it is “working.” In engineering terms, heat is evidence of inefficiency. Heat is simply energy that failed to do its job.

The grid in your house is infinite (for all practical purposes), so we don’t care if an AC adapter wastes 10% energy as heat. But in a battery system, every watt is finite. This is the core problem of ac vs dc efficiency power station management.

The Path of Pain (AC):
Station Battery (48V DC) ➔ Inverter (15% Loss) ➔ 120V AC ➔ Wall Brick (10% Loss) ➔ 20V DC ➔ Laptop

Every time you change the “flavor” of the electricity (Voltage or Current Type), you pay a tax. In the example above, we changed the electricity three times. The rectifier inside your AC brick uses diodes to chop the negative side of the AC wave, flipping it to positive. This process creates voltage drop and heat.

The Path of Least Resistance (DC):
Station Battery (48V DC) ➔ Buck Converter (2% Loss) ➔ 20V DC ➔ Laptop

Here, we changed the electricity only once (stepping down voltage). The modern USB-C Power Delivery (PD) standard is a game-changer for ac vs dc efficiency power station calculations. It allows the power station and the laptop to “negotiate” the exact DC voltage needed (5V, 9V, 12V, 15V, or 20V), eliminating almost all conversion overhead.

Part 6: When Must You Use AC?

Despite the clear winner in the ac vs dc efficiency power station debate, the AC outlet exists for a reason. There are two categories of devices where DC alternatives are either unavailable or impractical.

1. Resistive Loads (Heating Elements)

Toasters, kettles, hair dryers, and space heaters require massive amounts of current to generate heat. A 1500W space heater would pull 125 Amps at 12V.

• The Physics: Running 125 Amps requires copper cables as thick as your thumb (0 AWG or larger) to prevent melting.
• The Verdict: You must use AC. The high voltage (120V) allows for lower amperage (12.5 Amps), making the power transmission safe and cables manageable. The “Inverter Tax” here is simply the cost of doing business.

2. High-Torque Inductive Loads (AC Motors)

Large power tools (circular saws), sump pumps, and full-size residential refrigerators use AC induction motors. These motors are designed specifically to run on the 60Hz frequency of the AC sine wave.

• The Physics: While Brushless DC (BLDC) motors exist, most household appliances are still legacy AC.
• The Verdict: You must use AC. Trying to run these on DC is impossible without a specialized inverter.

For these devices, you shouldn’t worry about ac vs dc efficiency power station data; you should worry about proper cabling. Ensure you have clean sine wave power for these sensitive motors.

Part 7: The Economic Analysis (Cost vs Benefit)

Is it worth buying a special DC cable? Let’s look at the economics of ac vs dc efficiency power station upgrades.

• Cost of Energy: Portable battery storage is expensive. A 1000Wh station costs roughly $800 ($0.80 per Wh).
• Cost of Waste: If you waste 20% of that capacity on AC inefficiency, you are effectively throwing away $160 worth of battery utility.
• Cost of Solution: A USB-C to USB-C cable costs $15. A DC5521 CPAP cable costs $30.

The ROI: Spending $30 to save 20% of your battery capacity is the single best investment you can make. It is far cheaper to buy a DC cable than to buy a larger battery or an extra solar panel to compensate for the AC loss. This financial perspective reinforces the importance of optimizing ac vs dc efficiency power station strategies.

Part 8: DIY Testing Protocol

Don’t trust my math? As an engineer, I encourage you to verify this yourself. Here is a simple protocol to test ac vs dc efficiency power station metrics at home.

Tools Needed:

1. A Portable Power Station.
2. A Kilowatt Meter (Plug-in power meter for AC).
3. A Resistive Load (Incandescent bulb or small heater).
4. A USB Power Meter (for DC).

The Test:

1. AC Test: Charge battery to 100%. Plug the Kilowatt meter into the AC outlet, and the load into the meter. Run until the battery hits 0%. Record the “Total kWh” on the meter.
   • Formula: (Total kWh / Rated Battery Capacity) = AC Efficiency %.
2. DC Test: Charge battery to 100%. Use a USB load or 12V load. Run until 0%.
   • Note: Most stations track DC output on the built-in screen more accurately than AC output.

You will almost invariably find that the AC test yields ~80-85% of the rated capacity, while the DC test yields ~90-95%. This empirical data is the ultimate proof of the ac vs dc efficiency power station gap.

Part 9: Future Tech – Gallium Nitride (GaN)

The gap in ac vs dc efficiency power station performance is slowly narrowing thanks to Gallium Nitride (GaN) technology.

Traditional inverters use Silicon (Si) transistors. Newer, premium power stations (like recent models from EcoFlow and Anker) are starting to use GaN transistors in their inverters and chargers.

• Silicon: Switches slower, generates more heat.
• GaN: Switches faster, generates less heat.

GaN inverters can potentially raise AC efficiency from 85% to 92-93%. This is a significant leap. However, even with GaN, the AC path will always be less efficient than the DC path because of the physics of double conversion. The laws of thermodynamics cannot be broken, only bent slightly. To learn more about semiconductor efficiency, you can reference the technical data at the Department of Energy’s Power Electronics division .

Part 10: Comparative Efficiency Table (Big Data)

To give you a cheat sheet for your gear, we tested common appliances to measure the “Lost Energy” delta between AC and DC connections. Use this to decide which port to plug into to maximize ac vs dc efficiency power station results.

Device Category	Connection Type	Efficiency Rating	The “Why” (Physics)	Engineer’s Protocol
Smartphone	AC Wall Brick	Poor (<75%)	Double conversion (DC->AC->DC).	Use USB-C or USB-A ports.
Smartphone	USB-C PD	Excellent (95%)	Direct DC-to-DC negotiation.	Mandatory. Never use AC.
CPAP Machine	AC Wall Plug	Fair (80%)	Inverter overhead runs continuously.	Buy the specific DC power cord.
Starlink V2/V3	AC Router Plug	Fair (80%)	The router converts AC back to DC.	Modify to 12V DC system.
Laptop	AC Brick	Good (85%)	High wattage draw masks the idle loss.	USB-C PD is still superior.
Portable Fridge	AC Wall Plug	Terrible (70%)	Inverter idles while fridge cycles off.	Use the 12V “Cigarette” port.
Drone Charger	AC Brick	Poor (75%)	High loss during cell balancing phase.	Buy a 12V car charger.
LED Lamps	AC Plug	Poor (75%)	LEDs are native DC; AC driver adds heat.	Use USB powered lights.

For a comprehensive list of fridges that perform well on DC power, check our best 12V portable fridge reviews.

Part 11: Environmental Impact of Efficiency

One often overlooked aspect of ac vs dc efficiency power station choices is the environmental footprint.

If a camper relies on solar panels to recharge their station, efficiency directly correlates to land use.

• Scenario: A user needs 1000Wh of daily energy.
• Inefficient Setup (AC): Requires 1250Wh of production (due to 20% loss). Requires 300W of Solar.
• Efficient Setup (DC): Requires 1050Wh of production (due to 5% loss). Requires 200W of Solar.

By optimizing your ac vs dc efficiency power station usage, you reduce the number of lithium batteries and solar panels needed to sustain your lifestyle, reducing e-waste and manufacturing demand.

Actionable Summary: 10 Hacks for Maximum Efficiency

To win the ac vs dc efficiency power station battle and get the maximum value out of your expensive battery, follow these 10 engineering protocols:

1. Audit Your Cables: Look at the power cord of every device you plan to take off-grid. If it has a “brick” (AC/DC converter) on the cord, it is a DC device. Find a USB-C or 12V car adapter for it immediately to improve your ac vs dc efficiency power station ratio.
2. The 50W Rule: If a load is under 50 Watts (Phone, Lights, Router, Fan), avoid the AC outlet at all costs. The inverter’s idle consumption will likely equal or exceed the device’s consumption, cutting your runtime in half.
3. DC Fridges are Mandatory: Never run a portable fridge on AC. The fridge compressor cycles on and off, but the Inverter stays ON 100% of the time, draining power while the fridge does nothing.
4. Turn it Off: If the blue/green light on the “AC” button is lit, you are losing energy. Develop the habit of turning off the inverter immediately after you are done boiling water or running a tool.
5. Embrace USB-C PD: Modern USB-C Power Delivery can output 100W+. This can power almost any laptop (MacBook Pro, Dell XPS) directly. Using a USB-C to USB-C cable instead of the laptop’s wall charger is the single easiest way to gain 20% more battery life.
6. Size for the Loss: If you absolutely must use AC power (e.g., for a CPAP where no DC cable is available), buy a battery that is 20% larger than you think you need.
7. Use DC Lights: Instead of plugging a floor lamp into the AC outlet, use USB-powered LED strings or 12V RV lights. This keeps your campsite bright without waking up the vampire inverter.
8. Match Voltage: If building a DIY setup, try to match your battery voltage to your load voltage (e.g., 12V battery for 12V lights) to bypass even the DC buck converter for 100% efficiency.
9. Monitor the Screen: Most modern power stations show “Output Watts.” Compare the Watts shown when plugging a laptop into AC vs DC. You will physically see the AC number is higher (due to loss).
10. Solar Balancing: Remember that inefficiency on the output side means you need more input. If you waste 20% power on AC, you need 20% more solar panels to compensate. This is the final variable in the ac vs dc efficiency power station equation.

By favoring the DC output and understanding the physics of ac vs dc efficiency power station mechanics, you effectively increase the size of your battery by 15-20% without spending a dime on extra capacity. In an emergency blackout or a long camping trip, those extra electrons are priceless. To verify the chemistry of your battery, reference Battery University  for deep technical specs.
