If your portable power station not charging, it feels like everything is broken at once: your fridge warms up, your CPAP backup plan is gone, your Starlink drops, and the clock starts ticking. I know it’s frustrating. Here is the fix—step-by-step—written like a repair manual from the bench.
This guide targets the exact focus keyword portable power station not charging and the long-tail keywords people actually type when they’re panicking:
- portable power station not charging AC
- portable power station not charging solar
- portable power station not charging from car
- portable power station not charging but works
- portable power station not charging 0W input
- EcoFlow / Jackery / BLUETTI not charging (common brand searches)
WARNING: If you see swelling, hissing, smoke, sparks, melted ports, leaking fluid, or any area too hot to touch, stop immediately. Unplug every connector (inputs and outputs). Move the unit to a non-flammable, ventilated spot. Contact the manufacturer. Don’t keep testing a potentially failing lithium pack.
The “Symptom” Intro (what you’re actually seeing)
When a portable power station not charging, the screen and behavior usually match one of these:
- AC IN connected, input reads 0W (or “—”)
- Input shows watts briefly, then drops back to 0W repeatedly
- Car charging starts, then stops after a few minutes
- Solar input stays at 0W in full sun
- Solar input spikes and instantly shuts off (often PV over-voltage protection)
- It charges to 60–90% and then refuses to continue
- It says “charging” but the % doesn’t change for hours
- It discharges normally, but every charging source shows 0W (classic “portable power station not charging but works”)
We’re going to separate:
- Bad source / bad cable / wrong port
- Protection lockout (temperature, PV over/under-voltage, BMS)
- True internal hardware failure
Quick Triage (check these 3 things immediately)
1) One input only, no loads
Turn off outputs: AC, DC, USB. Unplug every device. Now test charging again.
A surprising number of “portable power station not charging” reports are actually “charging, but the load is consuming it instantly,” especially with routers, fridges, and heaters.
Internal link:
2) Temperature reality check
BMS will refuse charging if the cells are too cold or too hot. Bring the unit near 50–86°F (10–30°C) and retry.
Internal links:
3) Establish a baseline with AC (direct wall outlet)
Plug the OEM adapter into a known-good wall outlet (skip power strips and long extensions for this test). Fully seat the DC IN plug—half-in can arc and damage the port.
If portable power station not charging AC even in this baseline test, that’s a big clue: either the adapter is dead, the input port is damaged, or internal charging hardware has failed.
Deep Diagnosis (the core)
Below are 7 causes that explain almost every portable power station not charging case I see—across Jackery, EcoFlow, and BLUETTI.
Cause #1: AC source or adapter failure (the most common “portable power station not charging AC” cause)
If your portable power station not charging AC, don’t assume the power station is bad. AC bricks fail. Cords fail. Wall outlets and power strips fail.
How to Test
- Plug the adapter directly into a different wall outlet (preferably a different room/circuit).
- Remove the power strip/extension cord from the test.
- Swap the detachable wall-to-brick AC cable if you can.
- Check adapter indicator LED (if it has one).
- Touch test after 10 minutes:
- Stone cold: not running
- Extremely hot: internal short/overload
- If you have a multimeter: measure the adapter’s DC output voltage and compare it to the label.
WARNING: Never open the AC adapter. The primary side can hold dangerous voltage.
How to Fix
- Replace the AC cable first (cheap and frequently the real culprit).
- Replace the adapter with OEM or exact-match spec (voltage, amps, polarity).
- If the DC IN port looks browned or feels loose/hot: stop and jump to Cause #6.
Outbound links (dofollow):
- NFPA electrical safety: https://www.nfpa.org/education-and-research/home-fire-safety/electrical
- UL certification background: https://www.ul.com/
Cause #2: Protection lockout (temperature, battery state, or input fault)
A portable power station not charging can be “working correctly” from the BMS perspective: it’s refusing to charge to protect cells.
How to Test
- Look for display warnings: HOT / LOW TEMP / INPUT ERROR.
- Fully power off. Disconnect everything. Wait 30–60 minutes.
- Retry AC charging at room temperature with outputs OFF.
- If it was stored dead for weeks/months, deep sleep is possible.
How to Fix
- Bring the unit back into a safe temperature range and retry.
- For deep sleep: connect OEM AC and leave it connected 60–120 minutes. Don’t keep cycling buttons.
- If the unit charges but % is wrong, do a calibration cycle.
Internal links:
Outbound links:
- IEC (standards org): https://www.iec.ch/
- BMS primer: https://en.wikipedia.org/wiki/Battery_management_system
Cause #3: Car charging instability (“portable power station not charging from car”)
If portable power station not charging from car, the car’s 12V socket behavior is usually to blame: voltage sag, socket cut-off, or auto start/stop cycling.
How to Test
- Start the engine (don’t rely on ACC mode).
- Try another 12V socket (rear cargo sockets can be different).
- Inspect the car charger plug fit—loose fit equals intermittent power.
- If the cable has an inline fuse, check it.
- Use a multimeter to measure the socket voltage and watch it under load (headlights, HVAC, etc.).
How to Fix
- Charge with the engine running and stable.
- Replace cheap car chargers; use thicker gauge cable and a tight plug.
- For long-term RV/van setups, use a fused battery clamp lead—only if you’re comfortable doing it safely.
WARNING: Never clamp to a battery without proper fusing. A short can start a fire quickly.
Outbound link:
- SAE resources: https://www.sae.org/

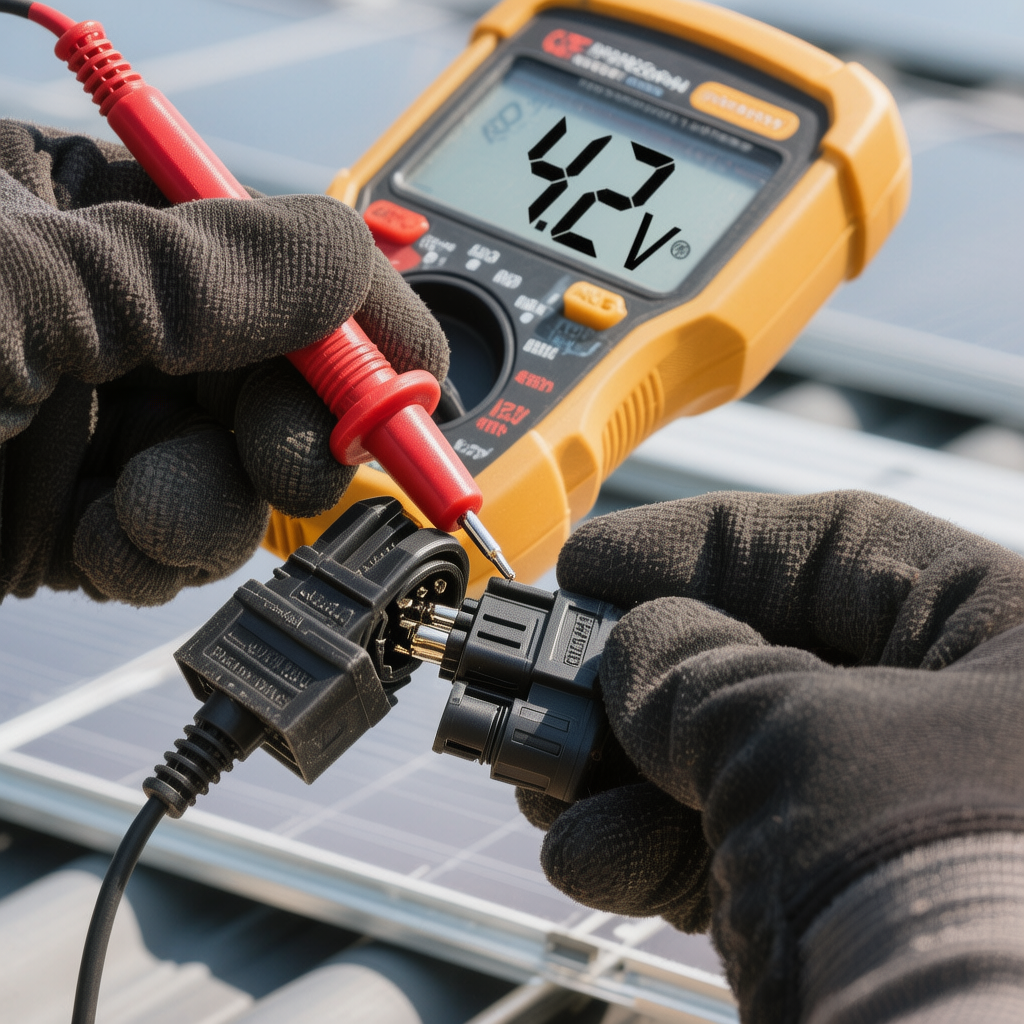

Cause #4: Solar mismatch (the most common “portable power station not charging solar” cause)
If portable power station not charging solar, it is almost always one of these:
- PV Voc above the station’s PV max (often due to series wiring)
- Reversed polarity from an adapter cable
- MC4 not fully seated / poor contact
- Shade/low sun causing voltage collapse under MPPT
How to Test
- Find your station’s PV input range (example: 11–30V, 12–60V, 11–150V).
- Measure panel Voc in full sun with a multimeter.
- If panels are in series, add Voc values (this is where over-voltage happens).
- Confirm MC4 “click-lock” seating.
- Confirm polarity at the station end (adapter cables are notorious).
How to Fix
- If Voc is too high: reduce series count or switch to parallel.
- If polarity is reversed: replace the adapter or correct the wiring.
- If MC4 is intermittent: reseat and/or re-crimp properly.
Internal links:
- Series vs parallel solar panels for portable systems
- How to crimp MC4 connectors
- MC4 connector stuck
- Portable power station MPPT solar input
Outbound links:
- NREL solar basics: https://www.nrel.gov/solar/
- PV terms (Voc/Vmp): https://en.wikipedia.org/wiki/Photovoltaic_system
Cause #5: Wrong port or wrong protocol (USB-C PD confusion)
Sometimes a portable power station not charging is simply plugged into the wrong port, or the USB-C brick can’t negotiate PD at the wattage your station requires.
How to Test
- Confirm you are using the actual input: AC IN, DC IN, PV IN, or USB-C IN (varies by model).
- For USB-C: verify PD support (60W/100W/140W) and use an E‑marked cable.
- Check settings/app: a few models gate input behavior via firmware/menu options.
How to Fix
- Use OEM cables/adapters or verified PD equipment.
- If unsure, return to AC baseline.
Internal links:
Outbound link:
- USB-IF official: https://www.usb.org/
Cause #6: Heat-damaged or loose input port (“wiggle the plug” symptom)
If wiggling the plug changes watts, your portable power station not charging has a physical connection problem.
How to Test
- Inspect DC IN, XT60, Anderson ports for browning, melting, deforming, or pin damage.
- Smell near the port (burnt plastic smell is a hard stop).
- Check if the cable end overheats during charging.
How to Fix
- Replace the cable if it’s suspicious.
- If the port shows heat damage, stop using it and go to service. Continuing can carbon-track the plastic and cause repeat arcing.
Internal links:
WARNING: Heat-damaged ports become high-resistance heaters. That can escalate fast.
Cause #7: Internal charging hardware failure (charger board / MPPT / MOSFET / fuse)
If a portable power station not charging from AC, car, or solar with known-good gear, internal failure is likely.
How to Test
- Test AC charging with a known-good OEM adapter.
- Test solar with verified Voc in range and correct polarity.
- Test car charging with engine running and stable socket voltage.
- If all still show 0W, perform a hard reset (below), then retest AC.
How to Fix
- User-level fixes end here: adapter/cable swap, cleaning, reset, calibration.
- If still dead: contact support. Repairs often involve input boards, MPPT modules, or charging stage components.
The “Master Reset” Table (Hard Reset combos)
Disconnect all inputs/outputs first, wait 60 seconds, then try.
| Brand | Common Hard Reset Steps | Expected Result | Notes |
|---|---|---|---|
| Jackery | Hold Power 10–15s to force off → wait 60s → press Power | Screen reboot | Works for lockups/logic faults |
| EcoFlow | Hold Power ~10s to reboot; some models have a Reset pinhole (per manual) | Reboot | Unplug AC IN/PV IN first |
| BLUETTI | Hold Power 10s off → unplug all 2 min → plug AC IN → power on; some models hold AC + DC 5s | Input re-detected | Model-specific |
| Anker | Hold Power 10s → restart; Reset button if equipped | Reboot | Follow model manual |
| Zendure/Other | Hold Power 10–15s → wait 2 min → plug AC IN first | Re-handshake | “Full disconnect” helps BMS states |
When to Call Support (clear “stop now” signs)
Call support if:
- portable power station not charging from any source (AC/car/solar) with known-good gear
- Input port is browned, melted, loose, or smells burnt
- Any smoke, sparking, swelling, or hissing
- Reboots/fan surges coincide with input dropping to 0W
- It got wet and now won’t charge
Internal troubleshooting hub:
FAQ (Reddit-style)
- Why is my portable power station not charging but it still powers devices?
Discharge can work while charge fails/locks out. Start with AC baseline + hard reset. - Portable power station not charging solar—my panels are 200W, why 0W?
Watts don’t matter if voltage/polarity are wrong. Check PV range and measure Voc. - Portable power station not charging from car unless I’m driving fast—why?
Alternator voltage rises with RPM. Idle sag or start/stop cuts the socket. Measure voltage. - Portable power station not charging AC through a power strip but works on the wall—what’s up?
Voltage drop or strip failure. Replace the strip; avoid thin extension cords. - How many times should I reset if my portable power station not charging?
Once or twice. Endless resets don’t fix bad cables, wrong PV voltage, or a burned port.
If your portable power station not charging, do this in order:
- AC baseline test (wall outlet direct)
- Temperature normalization (10–30°C / 50–86°F)
- One-input-only test + hard reset table
If AC still shows 0W with known-good gear, stop chasing solar/car variables and contact support—this points to the input stage or charging hardware.
